(C-36) - LIQUID CHEMICAL FERTILIZERS, LINE STRAINER

Запчасти Case IH LIQUID (C-36) - LIQUID CHEMICAL FERTILIZERS, LINE STRAINER

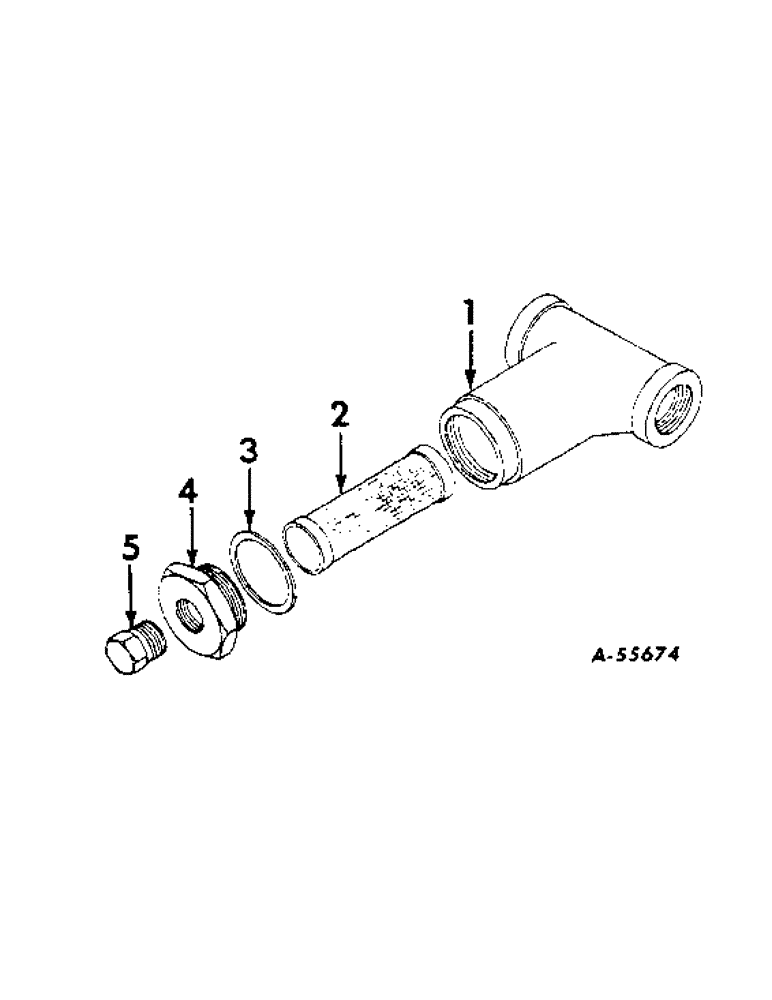

Схема запчастей Case IH LIQUID - (C-36) - LIQUID CHEMICAL FERTILIZERS, LINE STRAINER
5
4
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

526789R91

STRAINER, assembly line, consist of all items listed below

1шт.

1

BODY, aluminum, furnished only as part of assembly 526789R91

1шт.

2

526790R91

SCREEN, 50 mesh stainless steel

1шт.

3

526792R1

GASKET, asbestos

1шт.

4

526791R1

CAP, aluminum, electrofilmed

1шт.

5

PLUG, 1/4 in. aluminum pipe, furnished only as part of assembly 526789R91

1шт.

Выбрано товаров: 6
