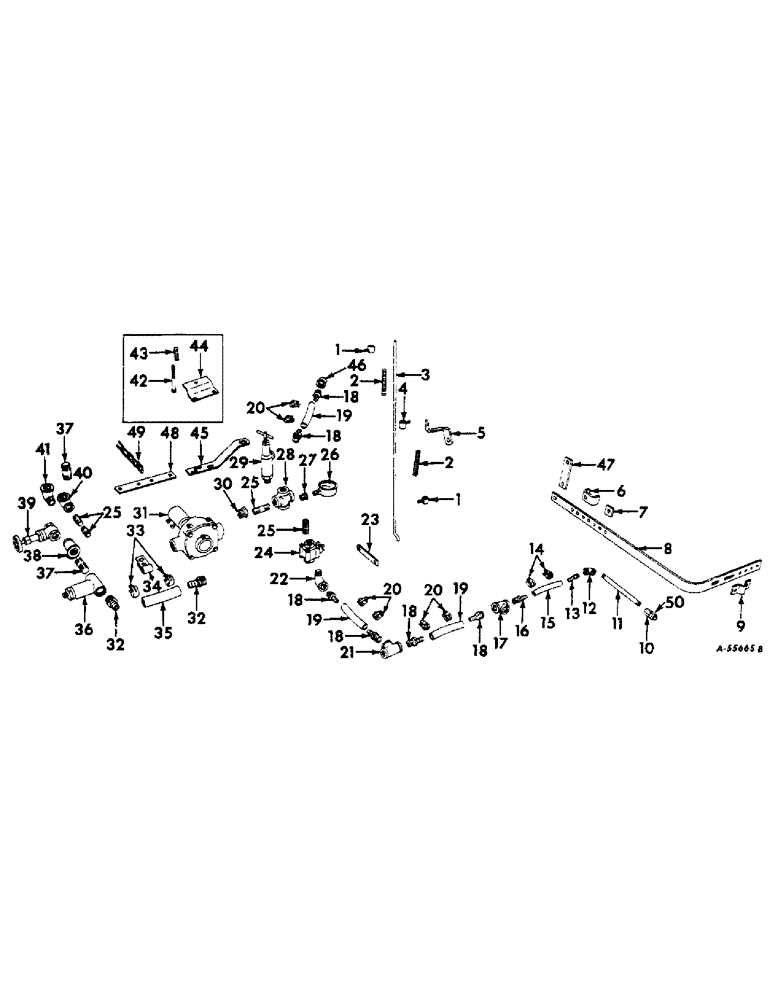

Запчасти Case IH LIQUID (C-35) - LIQUID CHEMICAL FERTILIZERS, PUMP UNIT, 1959 TO 1965

1

514547R11

COLLAR CLAMP

COLLAR W/SET SCREW, shut-off valve link

1шт.

2

2067A

SPRING

shut-off valve link

1шт.

3

527001R1

LINK, shut-off valve

1шт.

4

PO2437

PIVOT

SWIVEL, shut-off valve

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

WASHER, 13/32 x 7/8 in. x 16 ga

1шт.

5

526999R1

BRACKET, shut-off valve link

1шт.

BOLT, 5/8 x 1-1/4 in. mach

1шт.

WASHER, 5/8 in. lock

1шт.

6

526997R1

CLIP, nozzle bracket adjusting

1шт.

BOLT, 7/16 x 3/4 in. mach

1шт.

WASHER, 7/16 in. lock

1шт.

7

526996R1

SPACER, nozzle attaching

1шт.

8

526995R1

BRACKET, nozzle attaching

1шт.

BOLT, 3/8 x 1-1/4 in. mach

1шт.

BOLT, 7/16 x 1-3/4 in. crg

1шт.

BOLT, 1/2 x 2-1/4 in. mach

1шт.

NUT, 3/8 in.

1шт.

NUT, 7/16 in.

1шт.

WASHER, 3/8 in. lock

1шт.

WASHER, 7/16 in. lock

2шт.

WASHER, 1/2 in. lock

1шт.

9

526998R1

CLIP, nozzle pipe

1шт.

BOLT, 5/16 x 3/4 in. crg

2шт.

NUT, 5/16 in.

2шт.

WASHER, 5/16 in. lock

2шт.

10

486177

SHIM

CONNECTOR, body

1шт.

11

443592

NIPPLE, 1/4 NPT x 7-1/2 in. pipe, brass

1шт.

12

137538

YOKE

ELBOW, 1/4 x 90 degree pipe, brass

1шт.

13

526633R1

NIPPLE, 1/4 NPT x 3/8 in. hose, brass

1шт.

14

526611R91

CLAMP ASSEMBLY, 3/8 in. hose

1шт.

15

526601R1

HOSE,9.53mm ID x 139.7mm L

3/8 x 50 ft., buna N, neoprene cover, single braid

1шт.

16

526634R1

NIPPLE, 3/8 NPT x 3/8 in. hose, brass

1шт.

17

179645

TEE, 1/2 x 3/8 x 3/8 in. pipe, brass

1шт.

18

526635R1

NIPPLE, 1/2 NPT x 1/2 in. hose, brass

1шт.

19

526602R1

HOSE,12.7mm ID x 15240mm L

Buna N, Neoprene Cover, Single Braid 0.50" ID x 600.00"

1шт.

20

526610R91

CLAMP ASSEMBLY, 1/2 in. hose

1шт.

21

144089

TEE,1/2" NPT, Fem

1/2 in. pipe, brass

1шт.

22

127849

ELBOW

1/2 in. x 90 degree street pipe, brass

1шт.

23

526993R1

HANDLE, shut-off valve

1шт.

24

526994R1

VALVE, 1/2 in. shut-off, less handle

1шт.

25

191032

PIPE,Nipple, 1/2" NPT x 1 1/2", Brass

NIPPLE, 1/2 NPT x 1-1/2 in. pipe, brass

1шт.

26

526992R92

GAUGE

pressure

1шт.

27

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

1/2 x 1/4 NPT reducing, brass

1шт.

28

144158

LEVER

CROSS, 1/2 NPT, brass

1шт.

29

526788R91

VALVE ASSEMBLY, pressure relief for component parts see pressure relief valve

1шт.

30

217-45

REDUCER,3/4" - 14 NPTF x 1/2" - 18 Fem NPTF

bushing 3/4"-14 NPTF x 1/2"-18 Fem NPTF

1шт.

31

463269R91

PUMP ASSEMBLY, hypro no. N-7500, 8 nylon roller ni-resist, for component parts see pump assy

1шт.

31

526990R91

PUMP

ASSY, hypro no. C-6600, 6 nylon roller, cast iron, for component parts see pump assy

1шт.

32

526636R1

NIPPLE, 3/4 NPT x 3/4 in. hose, brass

1шт.

33

526609R91

CLAMP ASSEMBLY, 3/4 in. hose

1шт.

34

526653R1

CLAMP, hose

1шт.

35

526603R1

HOSE

3/4 in. x 25 ft, buna N, neoprene cover, double braid

1шт.

36

526789R91

STRAINER ASSEMBLY

1шт.

37

188108

CLEVIS

NIPPLE, 3/4 NPT x 2 in. pipe, brass

1шт.

38

426872

TEE, 3/4 x 1/2 x 1/2 in. pipe, brass

1шт.

39

527007R91

VALVE, 1/2 in. two-way shut-off, brass

1шт.

39

527008R91

VALVE, 3/4 in. three-way shut-off, brass

1шт.

40

179550

ELBOW, 3/4 x 1/2 in. 90 degree reducing, brass

1шт.

41

126031

ELBOW, 3/4 in. x 90 degree street, brass

1шт.

42

526989R1

BOLT, hex-hd mach dld 3/8 x 3-1/4 in., 1-1/2 in. threads, Serial Range: 1959-1961

1шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

102635

NUT,3/8"-16, G5

2шт.

WASHER, 13/32 x 7/8 in. x 16 ga

1шт.

43

C33464

SPRING, anchor attaching bolt, Serial Range: 1959-1961

1шт.

44

526988R1

ANCHOR, pump, Serial Range: 1959-1961

1шт.

16897

BOLT, 5/16 x 3/4 in. C-Z mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

45

527000R2

ANCHOR, control

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 in. C-Z mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

611344R1

WASHER

11/32 x 7/8 in. x 16 ga C-Z

2шт.

46

144130

PEDAL

ELBOW, 1/2 in. 90 degree pipe, brass

1шт.

47

527185R1

STRAP, nozzle attacing brackets

1шт.

17413R1

BOLT,Hex, 7/16"-14 x 3/4", G2, Full Thd

7/16 x 3/4 in. mach

1шт.

271500

SOCKET

7/16 in.

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 in. C-Z mach, required with 185 planter speed change case

4шт.

48

466008R1

ANCHOR, pump, 1961 and since

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 in. C-Z mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

611344R1

WASHER

11/32 x 7/8 in. x 16 ga C-Z

2шт.

49

466007R91

CHAIN, pump, 1961 and since

2шт.

50

671540R1

CAP, nozzle brass

1шт.
