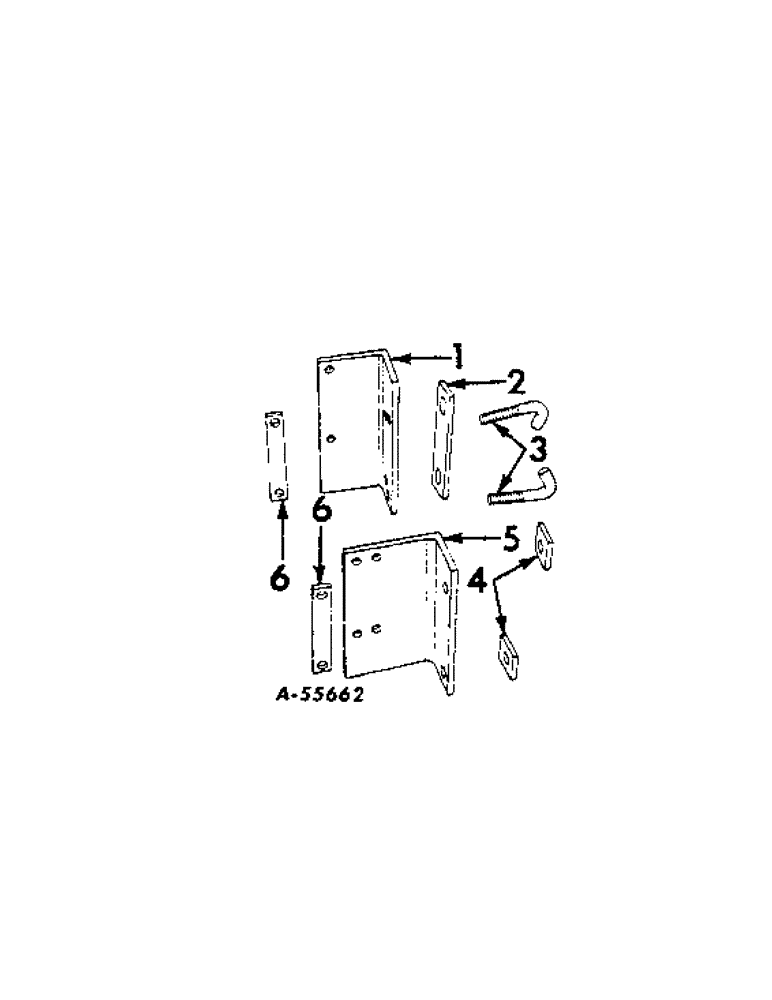

Запчасти Case IH LIQUID (C-33) - LIQUID CHEMICAL FERTILIZERS, SINGLE OR DOUBLE TANK SIDE

1

526972R1

ANGLE, front attaching

1шт.

BOLT, 1/2 x 1-3/4 in. mach

2шт.

BOLT, 5/8 x 2 in. crg

1шт.

NUT, 1/2 in.

2шт.

NUT, 5/8 in.

1шт.

WASHER, 1/2 in. lock

2шт.

WASHER, 5/8 in. lock

1шт.

2

526983R1

ADAPTER, side mounting

1шт.

3

515097R2

BOLT,3/4" - 10 x 3 5/16"

hook

1шт.

NUT, 3/4 in.

1шт.

WASHER, 3/4 in. lock

1шт.

4

526984R1

SPACER, side mounting

1шт.

5

526973R1

ANGLE, left rear attaching

1шт.

5

526974R1

ANGLE, right rear attaching

1шт.

BOLT, 1/2 x 1-3/4 in. mach

4шт.

BOLT, 3/4 x 2 in. mach

4шт.

NUT, 1/2 in.

4шт.

WASHER, 1/2 in. lock

4шт.

WASHER, 3/4 in. lock

4шт.

6

526979R1

SPACER, cradle attaching bracket

1шт.
