(C-32) - LIQUID CHEMICAL FERTILIZERS, MAST, FOR SINGLE OR DOUBLE HIGH OVER AXLE TANK, 1959 TO 1965

Запчасти Case IH LIQUID (C-32) - LIQUID CHEMICAL FERTILIZERS, MAST, FOR SINGLE OR DOUBLE HIGH OVER AXLE TANK, 1959 TO 1965

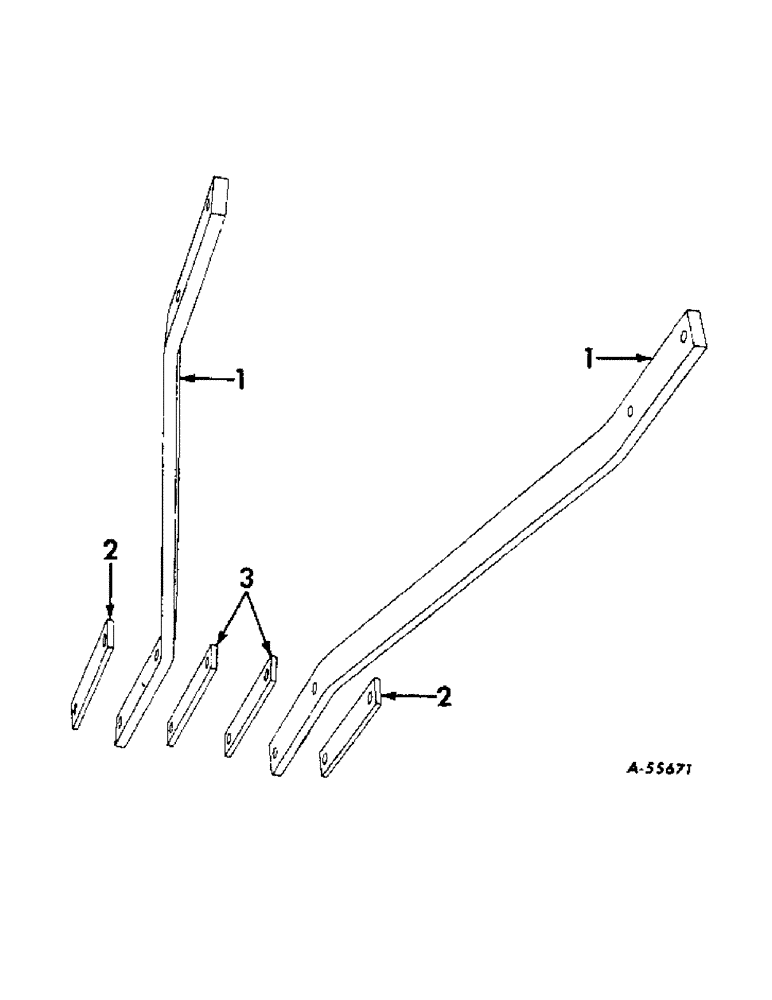

Схема запчастей Case IH LIQUID - (C-32) - LIQUID CHEMICAL FERTILIZERS, MAST, FOR SINGLE OR DOUBLE HIGH OVER AXLE TANK, 1959 TO 1965
3
1
2
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

525779R1

MAST, tank mounting

1шт.

BOLT, 1/2 x 1-3/4 in. mach

2шт.

BOLT, 1/2 x 2 in. mach

2шт.

BOLT, 3/4 x 9 in. mach

2шт.

NUT, 1/2 in.

4шт.

NUT, 3/4 in.

2шт.

WASHER, 1/2 in. lock

4шт.

WASHER, 3/4 in. lock

2шт.

2

525755R1

SPACER, rear axle, Farmall 400, 450, and 560 tractors

1шт.

3

525754R1

SPACER, rear axle, Farmall 300, 340, 350 and 460 tractors

1шт.
