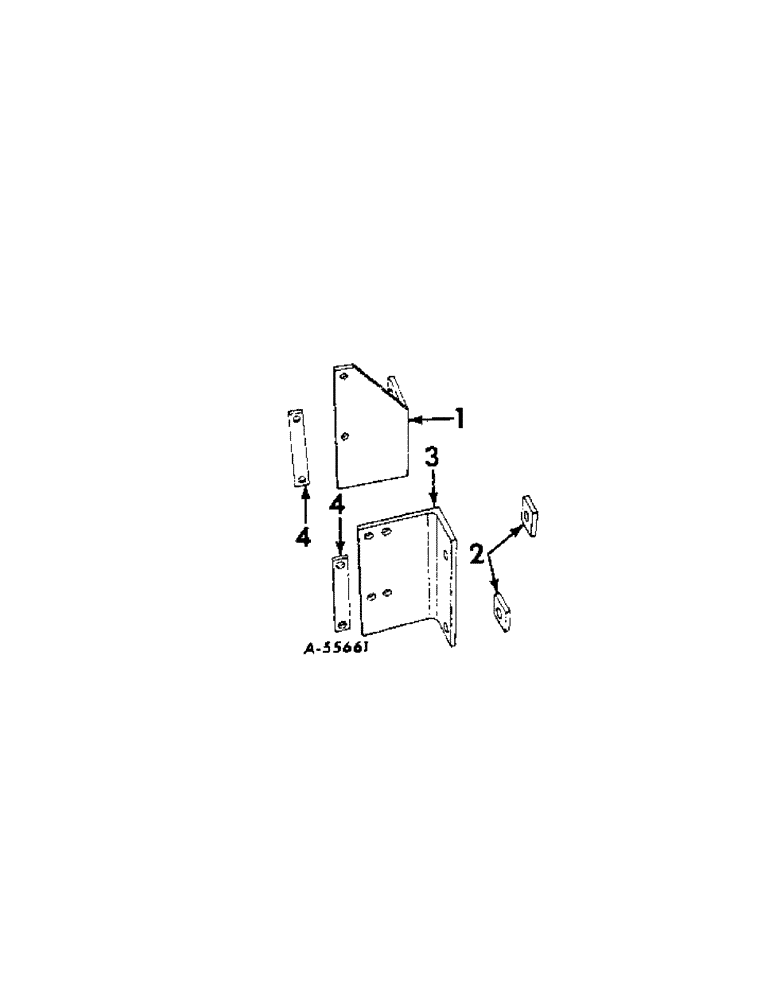

Запчасти Case IH LIQUID (C-32[A]) - LIQUID CHEMICAL FERTILIZERS, SINGLE OR DOUBLE TANK SIDE MOUNTING, 1959 TO 1965

1

526981R1

ANGLE, left front attaching

1шт.

1

526982R1

ANGLE, right front attaching

1шт.

BOLT, 1/2 x 1-3/4 in. mach

4шт.

BOLT, 3/4 x 1-3/4 in. mach

4шт.

NUT, 1/2 in.

4шт.

WASHER, 1/2 in. lock

4шт.

WASHER, 3/4 in. lock

4шт.

2

526984R1

SPACER, side mounting

1шт.

3

526973R1

ANGLE, left rear attaching

1шт.

3

526974R1

ANGLE, right rear attaching

1шт.

BOLT, 1/2 x 1-3/4 in. mach

4шт.

BOLT, 3/4 x 2 in. mach

4шт.

WASHER, 1/2 in. lock

4шт.

WASHER, 3/4 in. lock

4шт.

4

526979R1

SPACER, cradle attaching bracket

1шт.
