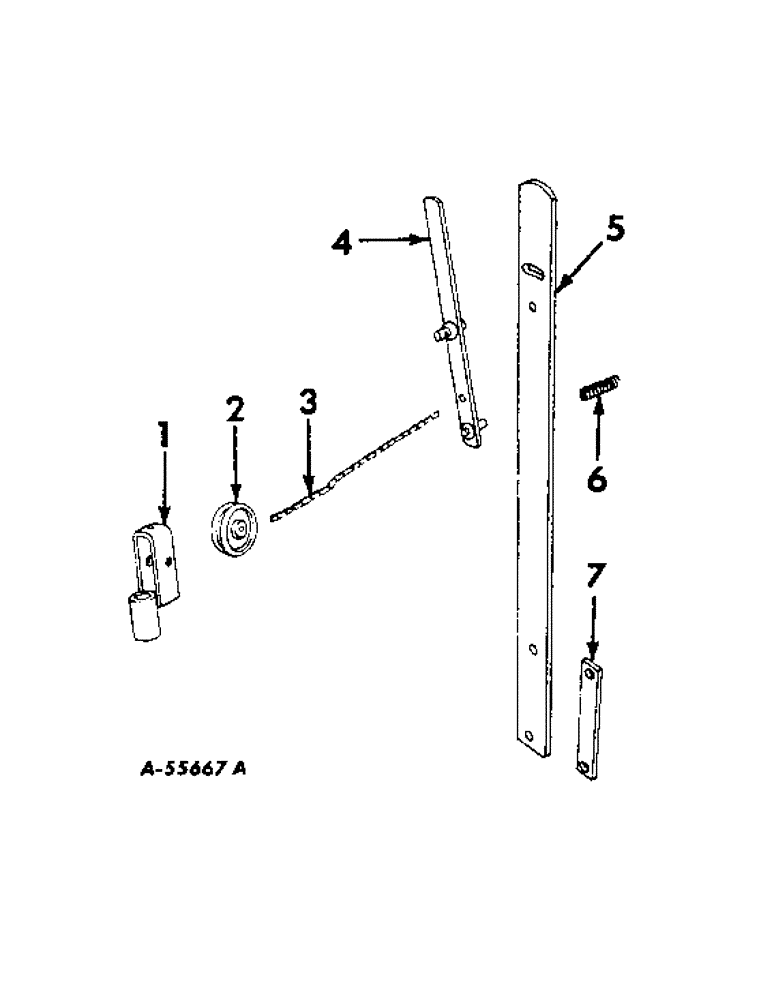

Запчасти Case IH LIQUID (C-31) - LIQUID CHEMICAL FERTILIZERS, PLASTIC HOSE AND CLAMP, 1959 TO 1965

626239R1

HOSE CLAMP,#17, 1 1/16", Spring

CLAMP, 5/8 in. plastic hose, not illustrated

1шт.

526604R1

HOSE

5/8 in. x 100 ft., plastic, not illustrated

1шт.

1

626245R91

CASE ASSEMBLY, pulley and vent pipe

1шт.

BOLT W/NUT, 1/4 x 1-1/4 in. mach

1шт.

WASHER, 1/4 in. lock

1шт.

2

J250M

PULLEY, chain

1шт.

3

478487R1

CHAIN, valve control

1шт.

4

527017R11

LEVER ASSY, throw-out

1шт.

BOLT, 3/8 x 2-1/2 in. dld mach

1шт.

NUT, 3/8 in.

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

PIN, 3/16 x 1 in. self-opening cotter

1шт.

WASHER, 13/32 x 3/4 in. x 16 ga

2шт.

5

527022R1

QUADRANT, lever

1шт.

BOLT, 1/2 x 2-1/4 in. mach

2шт.

NUT, 1/2 in.

2шт.

WASHER, 1/2 in. lock

2шт.

6

C33464

SPRING, lever throw-out

1шт.

7

526979R1

SPACER, lever quadrant

1шт.
