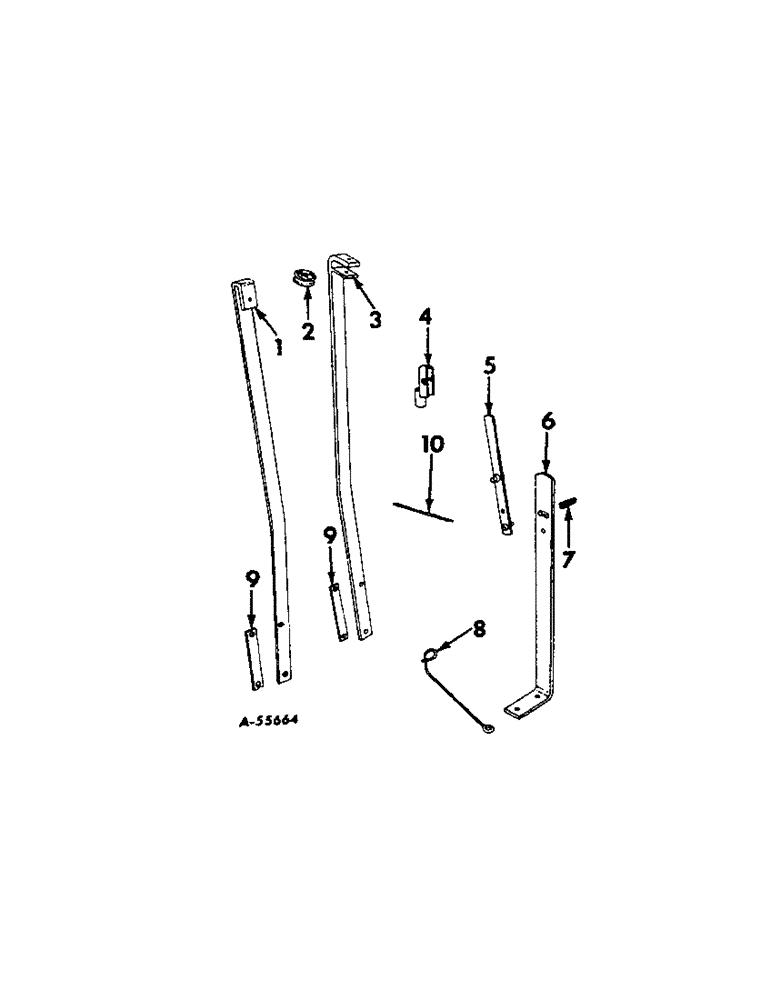

Запчасти Case IH LIQUID (C-30) - LIQUID CHEMICAL FERTILIZERS, MANUAL SHUT-OFF CONTROL, FOR SINGLE AND DOUBLE SIDED TANK, 1959 TO 1965

1

527020R1

BRACKET, pulley extension

1шт.

2

J250M

PULLEY, chain

1шт.

3

527015R11

BRACKET, idler pulley

1шт.

BOLT, 1/4 x 1-3/4 in. mach

1шт.

BOLT, 1/2 x 2-1/2 in. mach

2шт.

NUT, 1/4 in.

1шт.

NUT, 1/2 in.

2шт.

WASHER, 1/4 in. lock

1шт.

WASHER, 1/2 in. lock

2шт.

4

626245R91

CASE, pulley and vent pipe

1шт.

BOLT, 1/4 x 1-1/4 in. mach

1шт.

NUT, 1/4 in.

1шт.

WASHER, 1/4 in. lock

1шт.

5

527017R11

LEVER, throw-out

1шт.

BOLT, 3/8 x 2-1/2 in. dld mach

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

PIN, 3/16 x 1 in. self-opening cotter

1шт.

NUT, 3/8 in.

1шт.

WASHER, 13/32 x 3/4 in. x 16 ga

2шт.

6

527021R1

QUADRANT, lever

1шт.

7

C33464

SPRING, throw-out lever

1шт.

8

525751R1

ROD, hose retaining

1шт.

527013R1

BOLT, 1/2 x 2-1/2 in. mach, w/2 in. thread

1шт.

NUT, 1/2 in.

1шт.

9

526979R1

SPACER, pulley bracket

1шт.

10

626208R1

CHAIN, valve control, double side mounted tank

1шт.

10

478487R1

CHAIN, valve control, single and double side mounted tanks

1шт.
