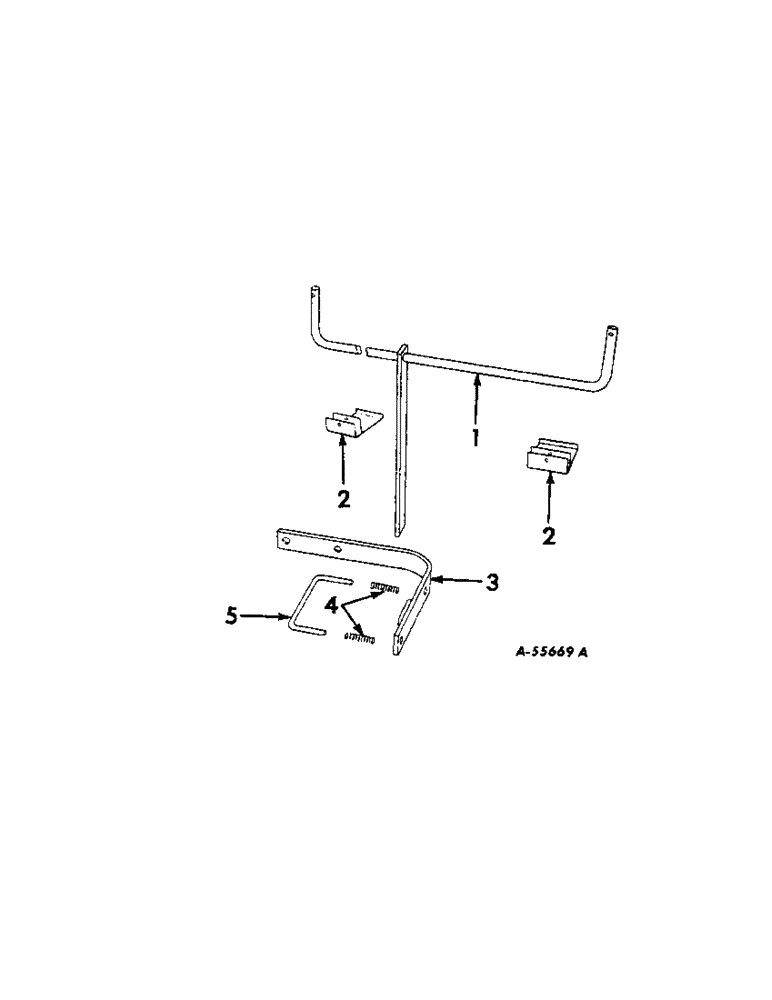

Запчасти Case IH LIQUID (C-30[A]) - LIQUID CHEMICAL FERTILIZERS, SHUT-OFF CONTROL FOR DOUBLE HIGH OVER AXLE TANK, 1959 TO 1965

1

525749R11

SHAFT, throw-out

1шт.

PIN, 7/16 x 1 in. self-opening cotter

1шт.

2

525792R91

BEARING, throw-out shaft

1шт.

PIN, 3/16 x 1-1/8 in. self-opening cotter

1шт.

3

525753R11

QUADRANT

1шт.

BOLT, 3/8 x 1-1/4 in. mach

2шт.

NUT, 3/8 in.

2шт.

WASHER, 3/8 in. lock

2шт.

4

N10307

SPRING, throw-out retainer

1шт.

5

525750R1

RETAINER, lever

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

4шт.

WASHER, 11/32 x 1 in. x 16 ga

2шт.
