(03-013) - HOSE ASSEMBLY, 60/85 BOOM

Запчасти Case IH FLX610 (03-013) - HOSE ASSEMBLY, 60/85 BOOM (09) - BOOMS

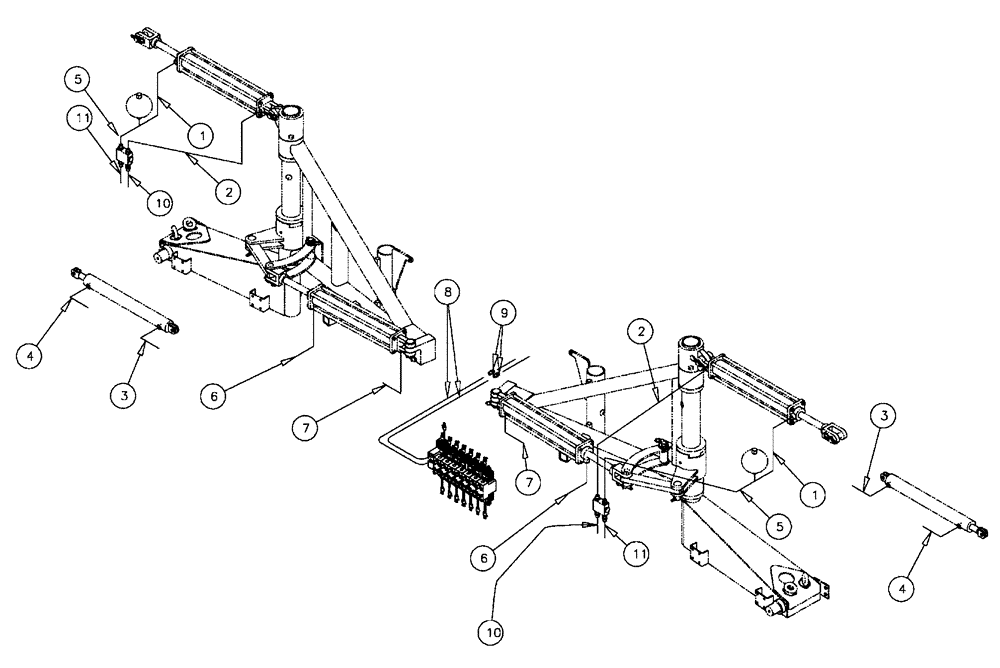

Схема запчастей Case IH FLX610 - (03-013) - HOSE ASSEMBLY, 60/85 BOOM (09) - BOOMS
1
5
8
2
5
7
9
3
11
4
6
2
3
10
10
6
4
1
11
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN316764

HOSE

Assembly, 6 X 48"

2шт.

2

BN317620

HOSE

Assembly, 6 X 57

2шт.

3

BN316758

HOSE

Assembly, 6 X 426

2шт.

4

BN316759

HOSE

Assembly, 6 X 441

2шт.

5

BN314945

HOSE ASSY.

Assembly

2шт.

6

BN316760

HOSE ASSY.

Assembly, 6 X 66"

2шт.

7

BN316761

HOSE

Assembly, 6 X 53

2шт.

8

87265361

HOSE

12 x 165"

2шт.

9

201-109

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

12MOR-12MOR

2шт.

10

BN317622

HOSE ASSY.,9.53mm ID x 1498.6mm L, SAE 100R17

Assembly, 6X59"

2шт.

11

BN317619

HOSE

Assembly, 6X56

2шт.
