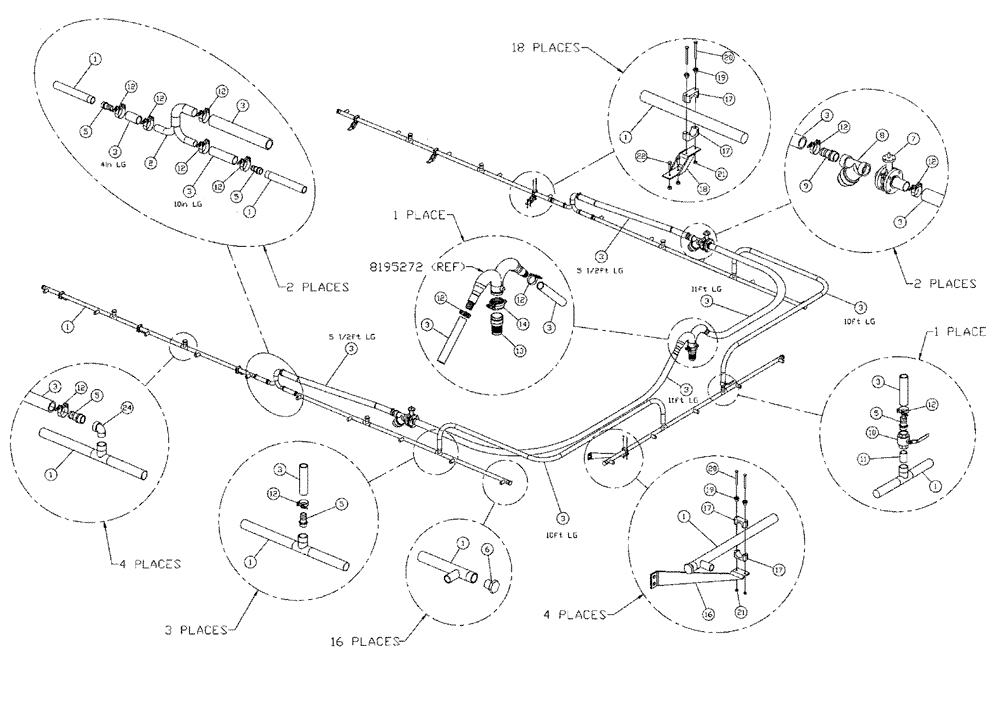

Запчасти Case IH FLX610 (03-006) - WET BOOM, 2" 60/85, 30" SPACING (09) - BOOMS

1

BN8195541

BOOM

Wet 2"/120

7шт.

2

BN8195423

BOOM

Manifold 2" SS

2шт.

3

BN29564

HOSE

2" Bulk EPDM Suction

71шт.

4

BN55359

LOCK NUT,1/4"-20, SS

80шт.

5

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

22шт.

6

BN73794

PLUG,2" Male NPT, Poly

2" Poly Pipe

16шт.

7

BN8195435

Assembly, Boom Spray Valve

2шт.

See Fig. 03-008

1шт.

8

BN2407999

FILTER STRAINER,2" LSQ Strainer

In-Line 2" (Cam)

2шт.

10

BN2395218

VALVE,2" SS Full Port Ball Valve

Ball 2" SS Fp

1шт.

11

BN1420967

LUBE NIPPLE

LUBRICATOR 2" Close S.S.

1шт.

12

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

24шт.

13

BN2399445

COUPLING

Grooved/HB 3"

1шт.

14

BN2399444

CLAMP,80mm ID

Victaulic 3"

1шт.

16

BN8191242

SUPPORTING ARM

Plate, Wet Boom Supt Rear

4шт.

17

BN2403325

CLAMP

Pipe 2" Stauff

22шт.

18

BN301628

MOUNTING PLATE

Wet Boom

18шт.

19

BN2403312-001

SPACER

Insert (Stauff)

44шт.

20

BN2403253

BOLT

HH 1/4-20 X 4 1/2SS

44шт.

22

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

28шт.

23

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

8шт.

24

BN2296593

ELBOW

Street 2" 90 Poly

4шт.

25

BN8195280

Boom Spray, See Fig 03-007

2шт.
