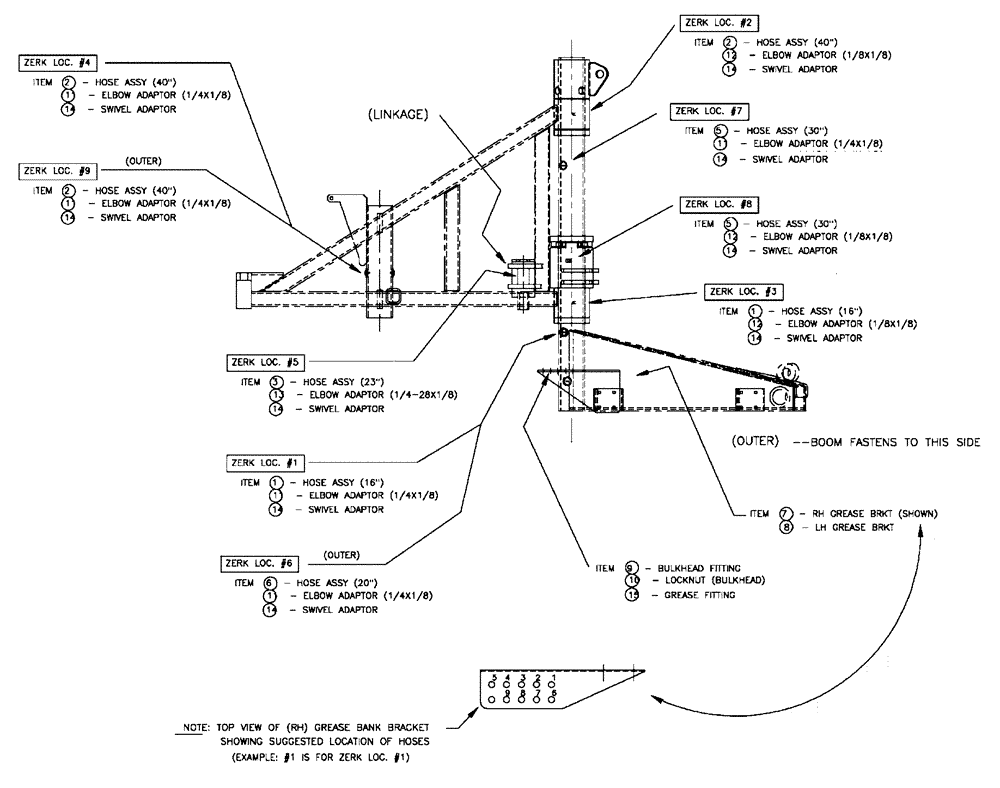

Запчасти Case IH FLX610 (03-002) - BOOM GREASE BANK GROUP (09) - BOOMS

1

BN35810

HOSE,0.13" ID x 16.00", SAE 100R7

Grease

4шт.

2

BN316482

HOSE,0.13" ID x 40.00", SAE 100R7

Grease-1/8" X 40"

6шт.

3

BN316481

HOSE,0.13" ID x 23.00", SAE 100R7

Grease-1/8" X 23"

2шт.

4

BN316480

HOSE,0.13" ID x 8.00", SAE 100R7

Grease-1/8" X 8"

2шт.

5

BN35808

HOSE,0.13" ID x 30.00", SAE 100R7

Grease, 30"

2шт.

6

BN35809

HOSE,0.13" ID x 20.00", SAE 100R7

Grease

2шт.

7

BN316483

BRACKET

RH Grease Bank

1шт.

8

BN316484

BRACKET

LH Grease Bank

1шт.

9

BN35805

ADAPTER

str 1/8 npsm-nptf

18шт.

10

BN53570

BHD LOCK NUT

18шт.

11

BN316475

ELBOW

Fitting, Body-90 DEG

10шт.

12

BN316494

ELBOW

Fitting, Body-90 DEG

6шт.

13

BN311142

ELBOW

Fitting, Body-90 DEG

2шт.

14

BN316478

ADAPTER

Swivel

18шт.

15

BN10451

LUBE NIPPLE

1/4"-28 45º

18шт.
