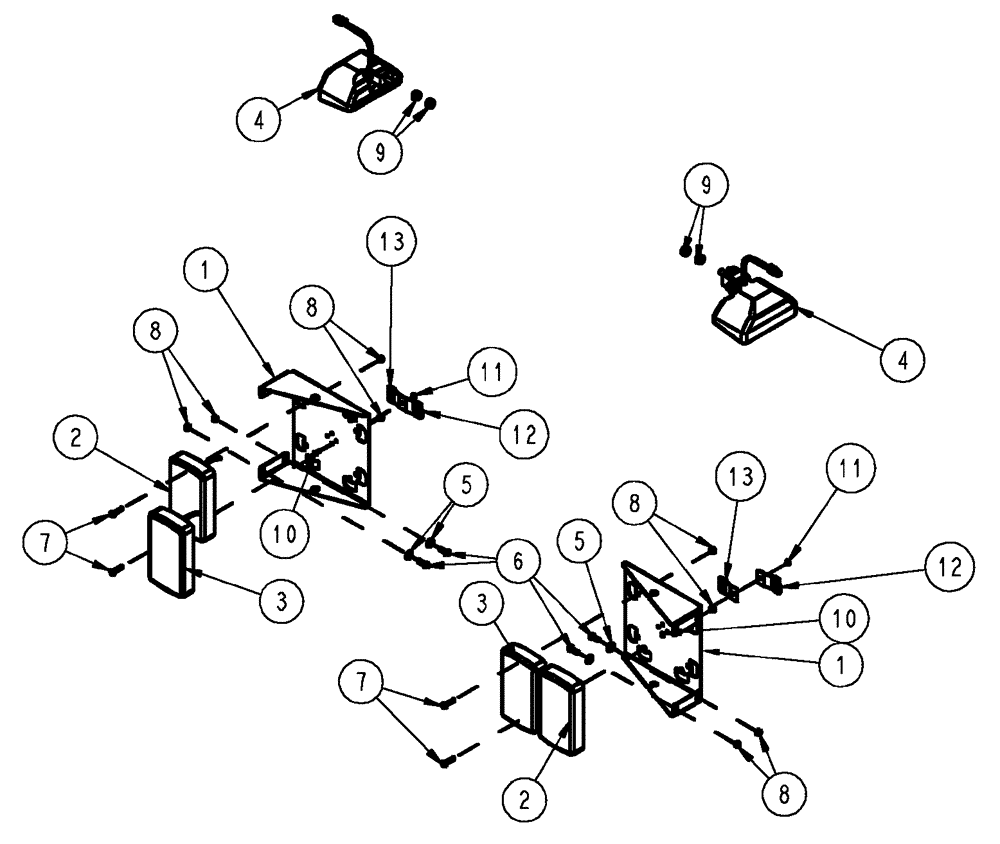

Запчасти Case IH FLX610 (01-010) - MAST LIGHT GROUP (06) - ELECTRICAL

1

87267089

MOUNTING PLATE

Tail Light, (LED)

2шт.

2

BN325077

LAMP, TAIL

LIGHT, TAIL Led Red, 12V, 36 LED Pattern

2шт.

2

84385294

LAMP

LED Red, 12V, 24 LED Pattern

2шт.

3

BN325078

LIGHT

Turn, Led Amber, 12V, 36 LED Pattern

2шт.

3

84385299

LAMP

Turn, LED Amber, 12V, 24 LED Pattern

2шт.

4

BN324749

LAMP

Assembly, 35W Flood, 3X5

2шт.

5

BN50138

WASHER,1/4", SS

8шт.

6

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

8шт.

7

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

8шт.

8

BN55359

LOCK NUT,1/4"-20, SS

16шт.

9

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

10

BN52348

BOLT,Phil Pan Hd, #10 - 32 x 1/2", Stainless

10-32 X 1/2SS PH, Phillip

2шт.

11

BN50050

NUT

10-32 Hex

2шт.

12

87267087

RETAINER

Assembly, Deutsch LH

2шт.

13

87267088

RETAINER

Assembly, Deutsch RH

2шт.
