Запчасти Case IH FLX610 (06-003) - SIGHT GAUGE, 1800 GALLON Tank

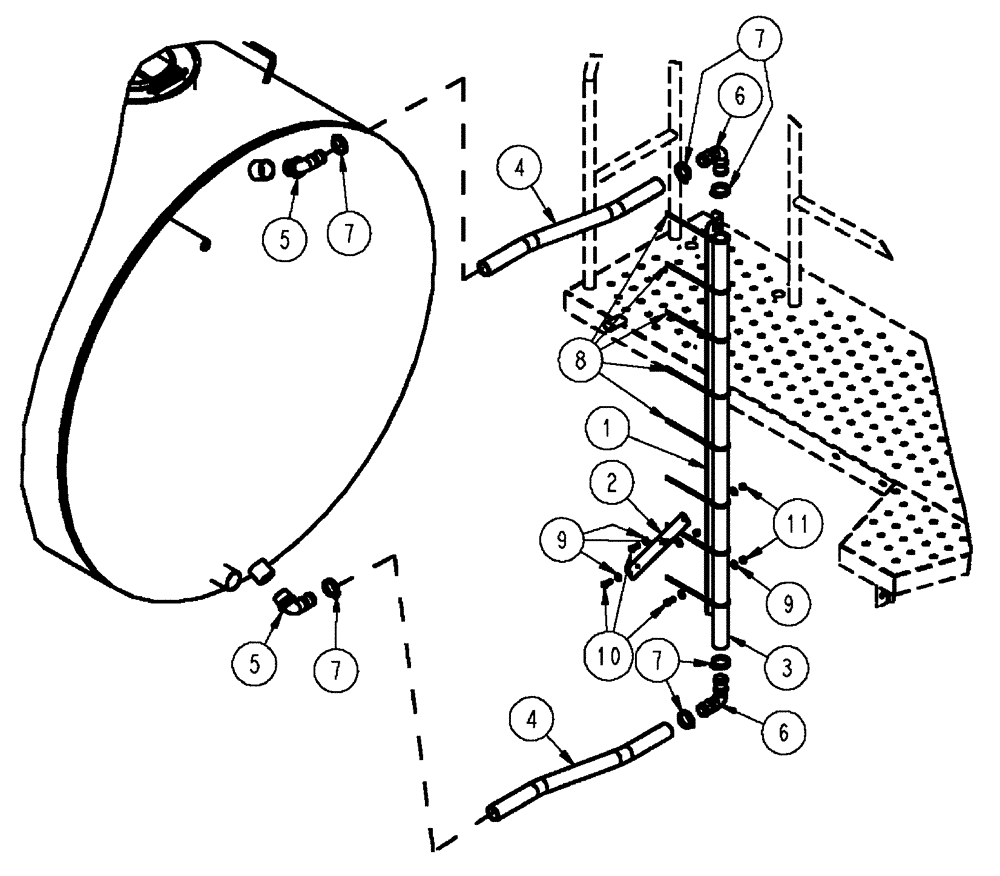

Схема запчастей Case IH FLX610 - (06-003) - SIGHT GAUGE, 1800 GALLON Tank
4
7
9
7
10
6
11
3
9
6
4
5
1
7
7
8
2
5

Артикул

Название

Примечание

Количество

1

87267861

GAUGE

1800 Gallon, 520A

1шт.

2

BN8195409

STRIP

Sight Gauge Brace

1шт.

3

BN2393046

TUBE

Clear 1 1/2 3/16"

1шт.

Cut 63" from bulk roll

1шт.

4

BN2393046

TUBE

Clear 1 1/2 3/16"

2шт.

Cut 31" from bulk roll

1шт.

5

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

2шт.

6

BN2390547

ELBOW

90º, 1 1/2 HB, Nylon

2шт.

7

BN320156

HOSE CLAMP

#24, Stainless Steel

6шт.

8

BN570007

STRAP

Black Only .12-4.0 Band

8шт.

9

BN50146

WASHER,3/8", Stainless

6шт.

10

BN50254

BOLT,3/8"-16 x 1", Stainless

3шт.

11

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

3шт.

Выбрано товаров: 13
