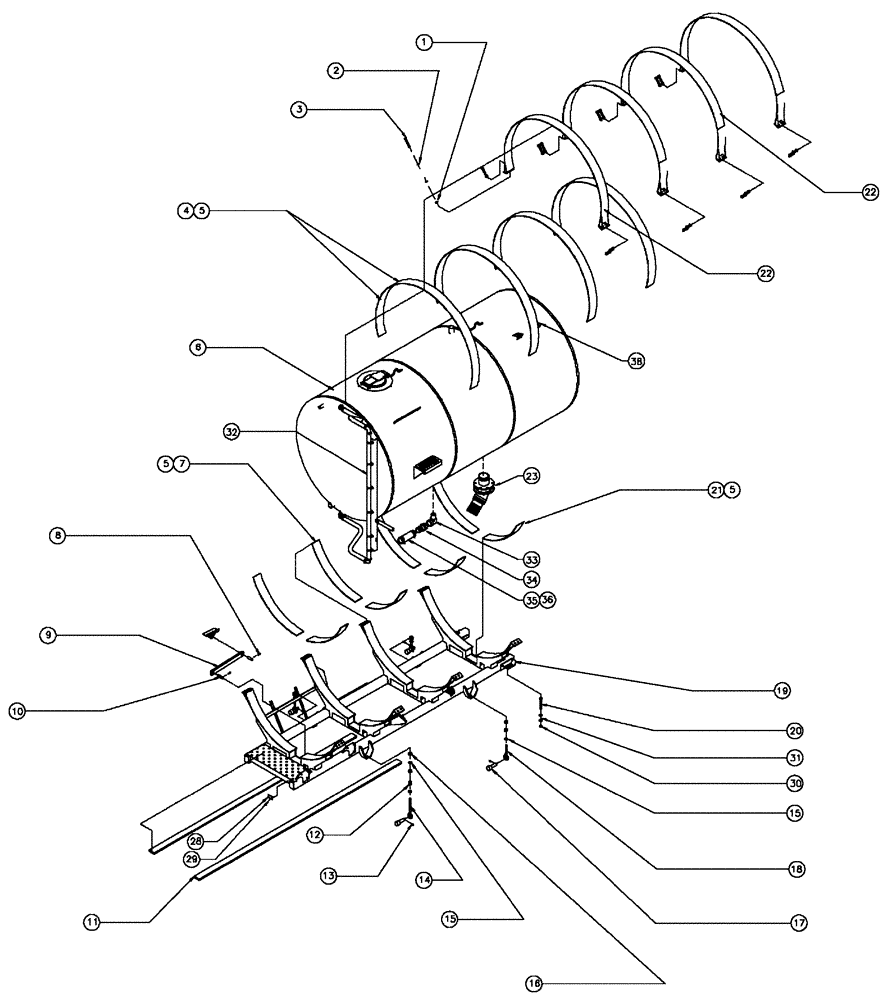

Запчасти Case IH FLX610 (06-002) - TANK GROUP, 2000 GALLON Tank

1

832-46416

NUT,M16 x 2, Cl 8

16шт.

2

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

32шт.

3

321246

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

16шт.

4

BN313330

NeopreneTank Band 126.26"

4шт.

5

BN2400107

Contact Ad0011, 0.1

1шт.

6

87265382

TANK

2000 Gallon, Liquid

1шт.

6a

87270464

CAP

16" With 10" Fill

1шт.

Service Parts for Ref. 6

1шт.

6b

BN2391314-001

GASKET

For 16" Cap

1шт.

Service Parts for Ref. 6

1шт.

7

BN313331

BAND

Neoprene Skid, 38.41"

4шт.

8

BN2391623

SPRING CLIP

Clip, 148 Dia. x 3 5/16"

2шт.

9

BN8193162

LINK

Strip Connecting

1шт.

10

BN2397664

PIN

Clevis 1"

2шт.

11

342781A1

BOARD

body mounting, 151 Long

2шт.

12

BN2397999

SPRING

2 X 1 ID MHP-85

2шт.

13

BN2297612

PIN

Clip 3/16" Dia x 3 3/4"

4шт.

14

BN21533

EYEBOLT

BOLT, EYE 3/4"-10 x 8

2шт.

15

86632591

WASHER,0.81" ID x 1.5" OD x 0.13" Thk

6шт.

16

86518194

NUT,3/4"-10, G8

6шт.

17

86986947

PIN,28.7mm OD x 76.45mm L

1.125 Dia. x 2.625

4шт.

18

BN2390533

EYEBOLT

3013T69, 3/4 X 3"

2шт.

19

342376A1

SKID PLATE

2000 gallon tank, with walkway, Start Year: 01-AUG-09

1шт.

20

412290

BOLT,M20 x 2.5mm x 180mm, Cl 8.8

4шт.

21

BN313332

BAND

Neoprene Skid 32.09"

4шт.

22

BN312518

BAND

Weld Tank 66" DIA.

4шт.

23

BN8205163-B

SHUT-OFF VALVE

Tank Assembly

1шт.

See Fig. 06-005

1шт.

24

BN313351

DECAL

Liquid Tank 2000 RS-R.

1шт.

25

BN313352

DECAL

Liquid Tank 2000-Strip

3шт.

26

BN313353

DECAL

Liquid Tank 2000 Step

1шт.

27

BN313354

DECAL

Liquid Tank 2000 CS R.

1шт.

28

321-7089

PLATE

serial number, stainless

1шт.

29

BN52346

POP RIVET

1/8" x .5 SS

2шт.

30

380424

NUT,M20 x 2.5, Cl 8

4шт.

31

86625260

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

8шт.

32

NS

NOT SERVICED

Group, Sight Gauge, 2000 Gallon

1шт.

See Fig. 06-004

1шт.

33

BN0502211

ELBOW

Pipe Street 3" 90

1шт.

34

BN85678

FITTING

3" NPT x 3" Hose Barb, Poly

1шт.

35

BN326025

HOSE,3.00" ID BULK

S/D, EPDM

1шт.

Cut 6" from bulk roll

1шт.

36

BN2403395

CLAMP

T-Bolt Band 3.56"

2шт.

37

BN8193144

LINK

for C tank

1шт.

38

87267869

BRACKET

Rinse Tank

4шт.

39

87267855

DECAL

FLX610 Tank Strip, LH, Single Decal For Entire Length of Tank, Not Shown

1шт.

40

87267856

DECAL

FLX610 Tank Strip, RH, Single Decal For Entire Length of Tank, Not Shown

1шт.
