(02-001) - HYDRAULIC CYLINDER GROUP, 60, 70, 75

Запчасти Case IH FLX610 (02-001) - HYDRAULIC CYLINDER GROUP, 60, 70, 75 Cylinders

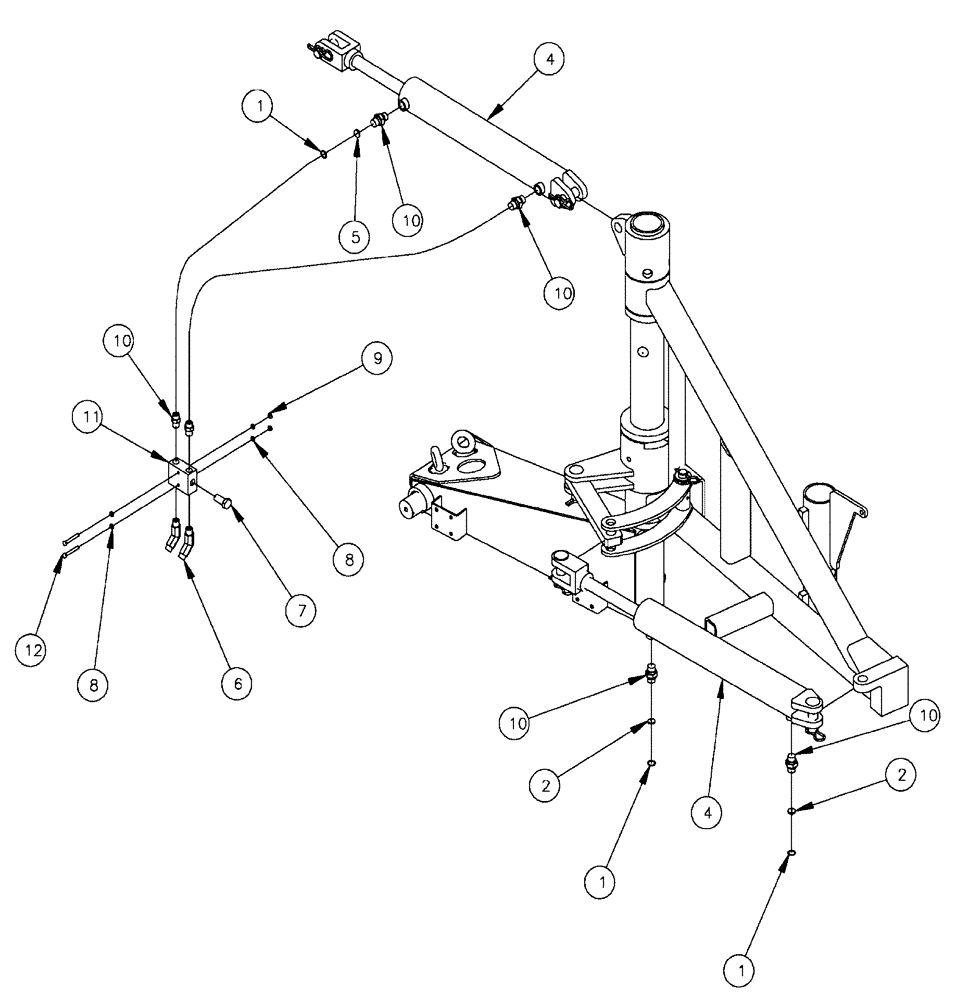

Схема запчастей Case IH FLX610 - (02-001) - HYDRAULIC CYLINDER GROUP, 60, 70, 75 Cylinders
9
4
10
1
1
6
2
10
5
1
10
7
4
11
8
8
10
10
12
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN305412

O-RING

FOR -6 FFOR

6шт.

2

BN313268

ORIFICE

.042 -6 Disk

4шт.

4

BN316644

CYLINDER,Double Acting, 31.75mm Rod, 457.2mm Stroke

HYD, 3 X 18 X 1.25

4шт.

See Fig. 02-005

1шт.

BN316644R

REMAN-HYD CYLINDER

FLX610 (10/03-8/09)

4шт.

BN316644C

CORE-HYD CYLINDER

Return Number

1шт.

BN318620

SEAL KIT

For CylINDER 316644

1шт.

5

BN316688

ORIFICE

.140,-6 Disk

2шт.

6

BN302637

FITTING

6MOR-6MB45

4шт.

7

BN98227

VALVE

Check, 30 PSI Waterman

2шт.

BN982191

Kit - For Cartridge

1шт.

8

BN50138

WASHER,1/4", SS

8шт.

9

BN55359

LOCK NUT,1/4"-20, SS

4шт.

10

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

12шт.

11

BN66796

BLOCK

Relief, Boom Lift

2шт.

12

BN55366

BOLT,1/4"-20 x 2.00", Stainless Steel

4шт.
