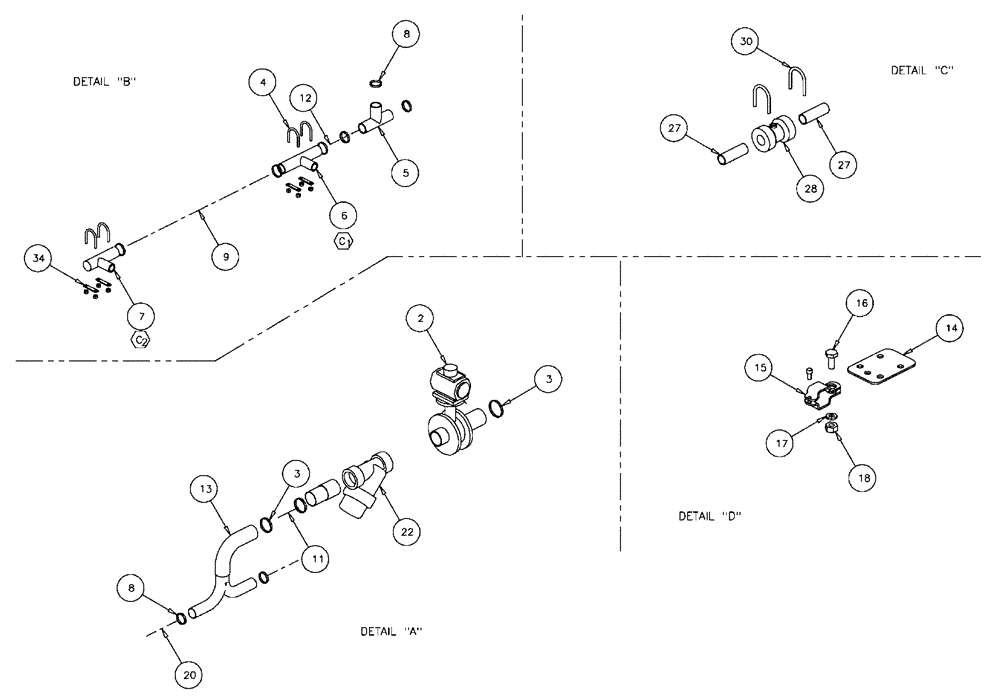

Запчасти Case IH FLX610 (05-042) - NOZZLE CIRCUIT, 60/85 BOOM, 3 SECTION, 60" SPACING Liquid Plumbing

1

BN319097

BAR

Weld Nozzle 30" & 60"

1шт.

2

BN8195435

Boom Spray

2шт.

See Fig. 03-008

1шт.

3

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

6шт.

4

BN2403315

U-BOLT

Round, 1/4"-20 x 1.93 x 2.31 SS

36шт.

5

BN2402038

TEE

1 1/2 HB Poly

8шт.

6

BN324828

FITTING,1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" Male Thread Hose Barb Tee

1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" MPT, Poly

8шт.

7

BN2390521

FITTING,1" x 1-1/2" 90 Degree Poly Hose Barb Elbow

1" MPT x 1 1/2" Hose Barb, Poly

10шт.

8

87485001

CLAMP,1.31" - 2.25"

#28, Stainless Steel

54шт.

9

87266737

HOSE

1 1/2" Bulk

5шт.

Cut 57.5" from bulk roll

1шт.

10

BN29564

HOSE

2" Bulk EPDM Suction

2шт.

Cut 144" from bulk roll

1шт.

11

BN29564

HOSE

2" Bulk EPDM Suction

2шт.

Cut 39" from bulk roll

1шт.

12

87266737

HOSE

1 1/2" Bulk

10шт.

Cut 12.25" from bulk roll

1шт.

13

BN2405274

TUBE

Boom Manifold

2шт.

14

BN8191214

MOUNTING PLATE

Sheet, Nozzle

2шт.

15

BN2403368

CLAMP

Nozzle AA111SQ-1

2шт.

16

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

17

87529233

WASHER,0.41" ID x 0.81" OD x 0.09" Thk

3/8"

2шт.

18

88902

NUT,3/8"-16

2шт.

19

BN2390841-144.0

HOSE

Cut

2шт.

20

87266737

HOSE

1 1/2" Bulk

2шт.

Cut 10.5" from bulk roll

1шт.

21

87266737

HOSE

1 1/2" Bulk

2шт.

Cut 40.5" from bulk roll

1шт.

22

BN2407999

FILTER STRAINER,2" LSQ Strainer

In-Line 2" (CAM)

2шт.

24

87266737

HOSE

1 1/2" Bulk

2шт.

Cut 42.25" from bulk roll

1шт.

25

BN2390841-043.0

Cut

2шт.

26

BN2390841-096.0

Sprayer AG

2шт.

27

BN2294412

FITTING

Hosebarb, 1.25 NPT x 1.50 HB

4шт.

28

BN2404501

NOZZLE

Stop, 1 1/4"

2шт.

30

BN2400371

CLAMP

Muffler 657-312

4шт.

32

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

16шт.

33

BN55359

LOCK NUT,1/4"-20, SS

88шт.

34

BN301740

CLAMP

Strip, Nozzle

36шт.
