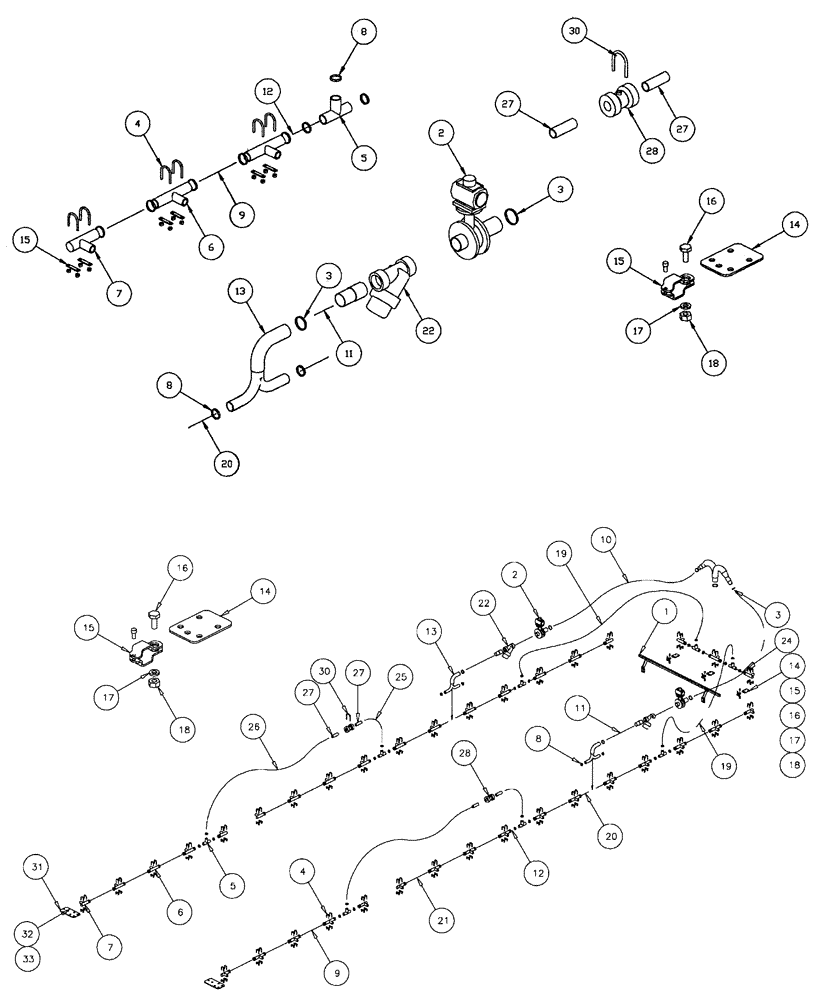

Запчасти Case IH FLX610 (05-041) - NOZZLE CIRCUIT, 60/85 BOOM, 3 SECTION, 30" SPACING Liquid Plumbing

1

BN319097

BAR

Weld Nozzle 30" & 60"

1шт.

2

BN8195435

Boom Spray

2шт.

See Fig. 03-008

1шт.

3

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

6шт.

4

BN2403315

U-BOLT

Round, 1/4"-20 x 1.93 x 2.31 SS

70шт.

5

BN2402038

TEE

1 1/2 HB Poly

8шт.

6

BN324828

FITTING,1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" Male Thread Hose Barb Tee

1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" MPT, Poly

25шт.

7

BN2390521

FITTING,1" x 1-1/2" 90 Degree Poly Hose Barb Elbow

1" MPT x 1 1/2" Hose Barb, Poly

10шт.

8

87485001

CLAMP,1.31" - 2.25"

#28, Stainless Steel

91шт.

9

87266754

HOSE

1-1/2" X 27.5" Dolphin

22шт.

10

BN322567

2" ID x 15' EPDM

2шт.

11

BN68378

HOSE,36.00"

EPDM

2шт.

12

87266737

HOSE

1 1/2" Bulk

10шт.

Cut 12.25" from bulk roll

1шт.

13

BN2405274

TUBE

Boom Manifold

2шт.

14

BN8191214

MOUNTING PLATE

Nozzle Mount

3шт.

15

BN2403368

CLAMP

Nozzle AA111SQ-1

3шт.

16

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

17

87529233

WASHER,0.41" ID x 0.81" OD x 0.09" Thk

3/8"

3шт.

18

88902

NUT,3/8"-16

3шт.

19

BN2390841-144.0

HOSE

Cut

2шт.

20

87266737

HOSE

1 1/2" Bulk

4шт.

Cut 10.5" from bulk roll

1шт.

21

87266737

HOSE

1 1/2" Bulk

2шт.

Cut 30" from bulk roll

1шт.

22

BN2407999

FILTER STRAINER,2" LSQ Strainer

In-Line 2" (CAM)

2шт.

24

87266737

HOSE

1 1/2" Bulk

2шт.

Cut 13" from bulk roll

1шт.

25

BN2390841-042.0

Cut

2шт.

26

BN2390841-096.0

Sprayer AG

2шт.

27

BN2294412

FITTING

Hosebarb, 1.25 NPT x 1.50 HB

4шт.

28

BN2404501

NOZZLE

Stop, 1 1/4"

2шт.

30

BN2400371

CLAMP

Muffler 657-312

4шт.

31

87267136

BRACKET, SUPPORTING

Mount, Nozzle

14шт.

32

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

28шт.

33

BN55359

LOCK NUT,1/4"-20, SS

168шт.

34

BN301740

CLAMP

Strip, Nozzle

70шт.
