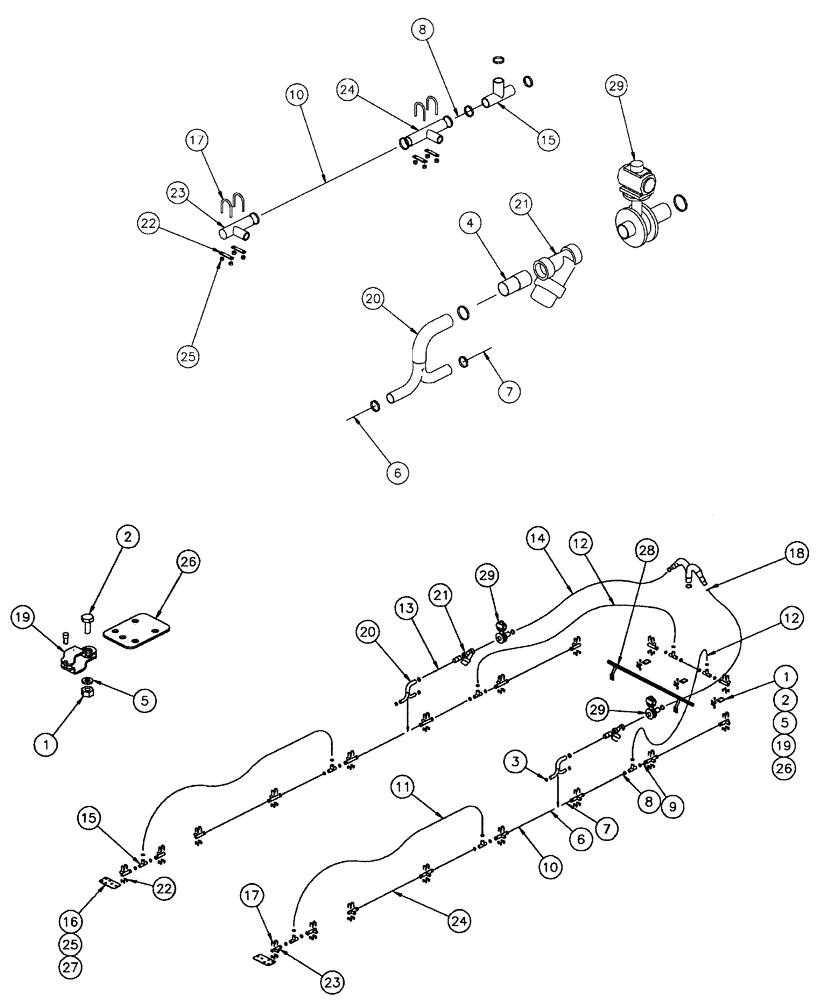

Запчасти Case IH FLX610 (05-040) - NOZZLE CIRCUIT, 70 BOOM, 5 SECTION, 30" SPACING Liquid Plumbing

1

88902

NUT,3/8"-16

2шт.

2

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

3

87485001

CLAMP,1.31" - 2.25"

#28, Stainless Steel

52шт.

4

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

2шт.

5

87529233

WASHER,0.41" ID x 0.81" OD x 0.09" Thk

3/8"

2шт.

6

87266737

HOSE

1 1/2" Bulk

2шт.

Cut 10.5" from bulk roll

1шт.

7

87266737

HOSE

1 1/2" Bulk

2шт.

Cut 22" from bulk roll

1шт.

8

87266737

HOSE

1 1/2" Bulk

2шт.

Cut 34.5" from bulk roll

1шт.

9

87266737

HOSE

1 1/2" Bulk

2шт.

Cut 42" from bulk roll

1шт.

10

87266765

HOSE

1-1/2" X 45.5" Dolphin

2шт.

11

BN2390841-057.5

Cut

2шт.

12

BN2390841-180.0

HOSE

Cut

2шт.

13

BN2390844-034.5

HOSE

Cut

2шт.

14

BN2390844-180.0

HOSE

Cut

2шт.

15

BN2402038

TEE

1 1/2 HB Poly

8шт.

16

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

12шт.

17

BN2403315

U-BOLT

Round, 1/4"-20 x 1.93 x 2.31 SS

36шт.

18

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

6шт.

19

BN2403368

CLAMP

Nozzle AA111SQ-1

2шт.

20

BN2405274

TUBE

Boom Manifold

2шт.

21

BN2407999

FILTER STRAINER,2" LSQ Strainer

In-Line 2" (CAM)

2шт.

22

BN301740

CLAMP

Strip, Nozzle

36шт.

23

BN2390521

FITTING,1" x 1-1/2" 90 Degree Poly Hose Barb Elbow

1" MPT x 1 1/2" Hose Barb, Poly

10шт.

24

BN324828

FITTING,1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" Male Thread Hose Barb Tee

1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" MPT, Poly

8шт.

25

BN55359

LOCK NUT,1/4"-20, SS

84шт.

26

BN8191214

MOUNTING PLATE

Sheet, Nozzle

2шт.

27

87267136

BRACKET, SUPPORTING

Mount, Nozzle

6шт.

28

BN319097

BAR

Weld Nozzle, 30" & 60"

1шт.

29

BN8195435

Boom Spray

2шт.

See Fig. 03-008

1шт.
