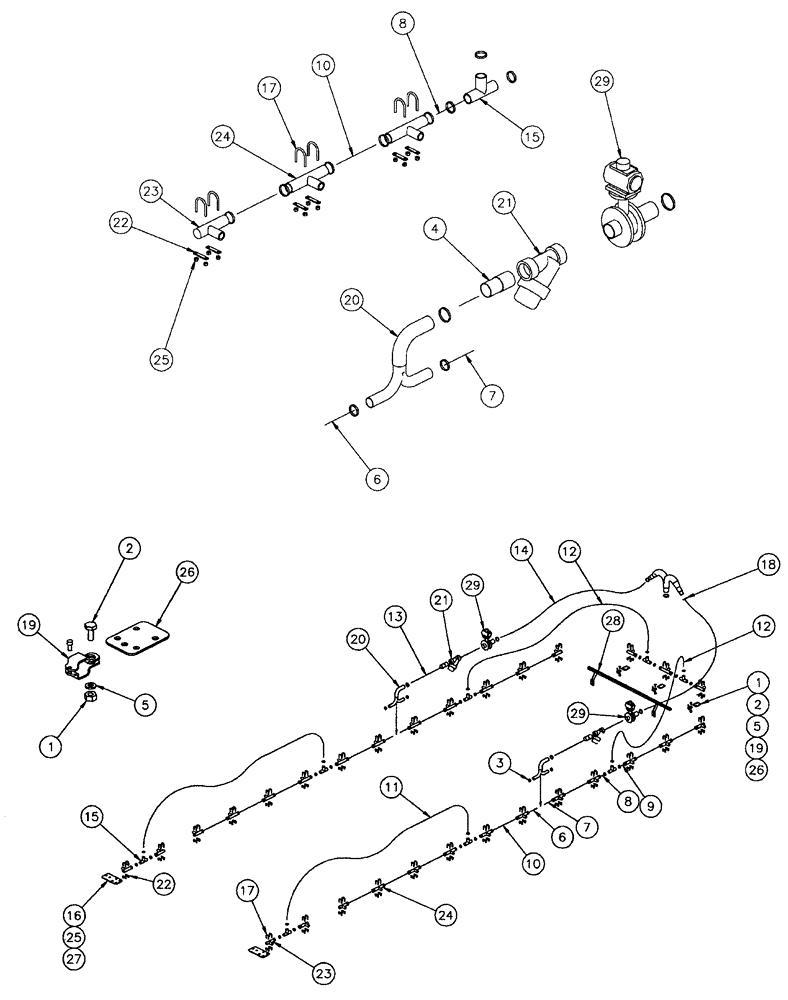

Запчасти Case IH FLX610 (05-039) - NOZZLE CIRCUIT, 70 BOOM, 3 SECTION, 30" SPACING Liquid Plumbing

1

88902

NUT,3/8"-16

3шт.

2

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

3

87485001

CLAMP,1.31" - 2.25"

#28, Stainless Steel

76шт.

4

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

2шт.

5

87529233

WASHER,0.41" ID x 0.81" OD x 0.09" Thk

3/8"

6шт.

6

87266737

HOSE

1 1/2" Bulk

2шт.

Cut 10.5" from bulk roll

1шт.

7

87266766

HOSE

1-1/2" X 11.5" Dolphin

2шт.

8

87266767

HOSE

1-1/2" X 16" Dolphin

2шт.

9

87266768

HOSE

1-1/2" X 21.5" Dolphin

2шт.

10

87266754

HOSE

1-1/2" X 27.5" Dolphin

16шт.

11

BN2390841-078.0

HOSE

Cut

2шт.

12

BN2390841-180.0

HOSE

Cut

2шт.

13

BN2390844-034.5

HOSE

Cut

2шт.

14

BN2390844-180.0

HOSE

Cut

2шт.

15

BN2402038

TEE

1 1/2 HB Poly

8шт.

16

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

24шт.

17

BN2403315

U-BOLT

Round, 1/4"-20 x 1.93 x 2.31 SS

58шт.

18

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

8шт.

19

BN2403368

CLAMP

Nozzle AA111SQ-1

3шт.

20

BN2405274

TUBE

Boom Manifold

2шт.

21

BN2407999

FILTER STRAINER,2" LSQ Strainer

In-Line 2" (CAM)

2шт.

22

BN301740

CLAMP

Strip, Nozzle

58шт.

23

BN2390521

FITTING,1" x 1-1/2" 90 Degree Poly Hose Barb Elbow

1" MPT x 1 1/2" Hose Barb, Poly

10шт.

24

BN324828

FITTING,1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" Male Thread Hose Barb Tee

1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" MPT, Poly

19шт.

25

BN55359

LOCK NUT,1/4"-20, SS

128шт.

26

BN8191214

MOUNTING PLATE

Sheet, Nozzle

3шт.

27

87267136

BRACKET, SUPPORTING

Mount, Nozzle

6шт.

28

BN319097

BAR

Weld Nozzle Bar 30" & 60"

1шт.

29

BN8195435

Boom Spray

2шт.

See Fig. 03-008

1шт.
