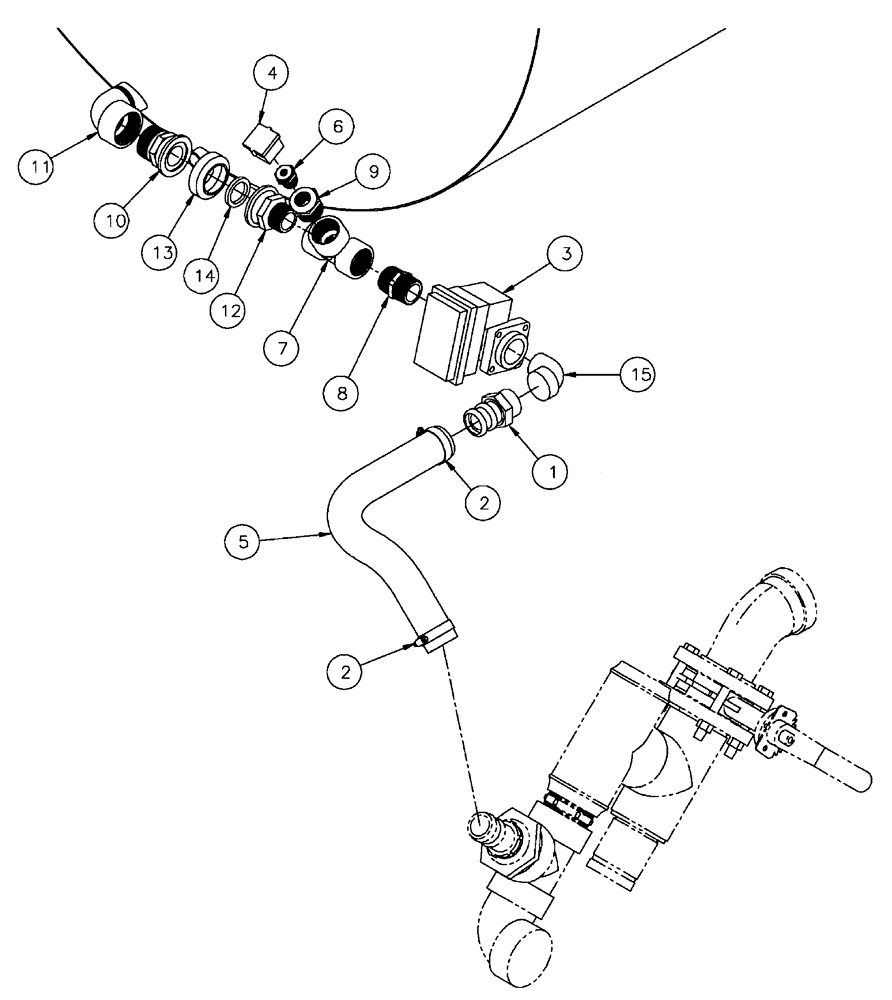

Запчасти Case IH FLX610 (05-038) - SPARGE PLUMBING GROUP Liquid Plumbing

1

BN313927

FITTING

Barb, 1.5NPT x 2 HS

1шт.

2

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

2шт.

3

BN316941

HYDRAULIC VALVE

1.5" Electric Poly

1шт.

4

BN324844

SENSOR

Digital Pressure

1шт.

5

BN29564

HOSE

2" Bulk EPDM Suction

2.333шт.

6

BN73550

BUSHING

Reducer, 3/4" MPT x 1/4" FPT, Poly

1шт.

7

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

1шт.

8

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 1/2" Short Poly

1шт.

9

BN73716

BUSHING,1-1/2" Male NPT x 3/4" Female NPT, Poly

1.5 x .75 Reducer Poly

1шт.

10

BN303185

ADAPTER,2" Flange x 2" Male NPT, Poly

2" Flange x 2" NPT

1шт.

11

BN73785

ELBOW

90-Street 2" Poly

1шт.

12

BN303190

FITTING,2" Flange x 1-1/2" NPT, Poly

2" Flange x 1-1/2" NPT, Poly

1шт.

13

BN303199

CLAMP,2" Flange

2" Standard Flange

1шт.

14

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

1шт.

15

BN73730

ELBOW,1-1/2", Poly

Straight, 1 1/2" Poly

1шт.
