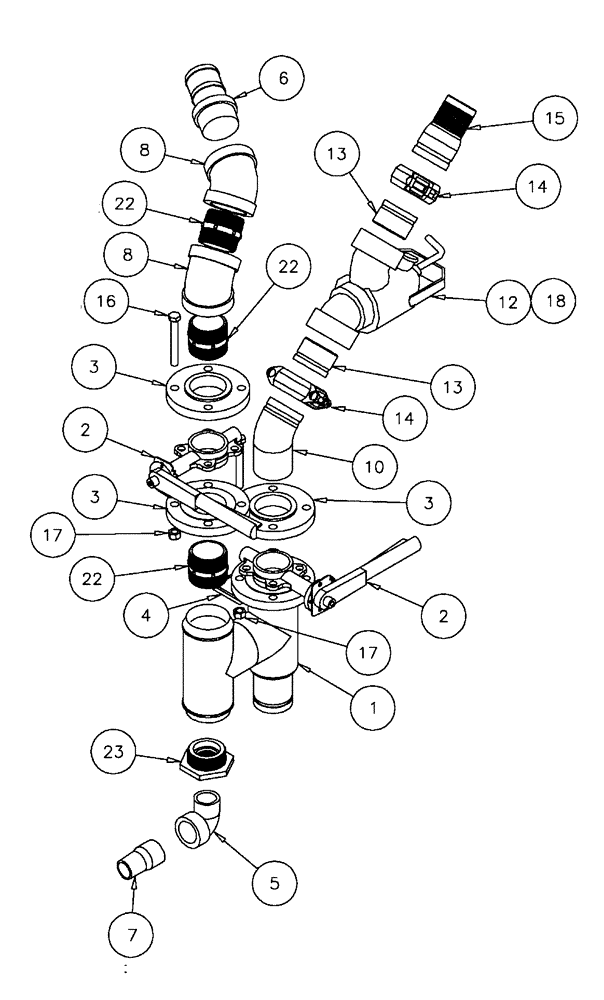

Запчасти Case IH FLX610 (05-034) - PRESSURE MANIFOLD Liquid Plumbing

1

87265387

MANIFOLD

Pressure, 3" Fill

1шт.

2

BN2392208

HYDRAULIC VALVE

3" Bray W/Handle

2шт.

3

BN2390656

FLANGE

Threaded 3" NPT, 150 lb

3шт.

4

BN325835

Pressure

1шт.

5

BN0502219

ELBOW

Pipe Street 2 90

1шт.

6

BN85678

FITTING

3" NPT x 3" Hose Barb, Poly

1шт.

7

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

1шт.

8

BN0502121

ELBOW

Pipe 3 45 Standard

2шт.

10

87266407

ELBOW

45º, 3" NPT x Grooved

1шт.

12

BN2397909

STRAINER ASSY.,3" 316 SS Y-Line Strainer w/ 6 mesh Screen

3" LSS-300-B/C

1шт.

13

BN8195374

LUBE NIPPLE

Grooved/MNPT 3 X 3LG

2шт.

14

BN2399444

CLAMP,80mm ID

Victaulic 3"

2шт.

15

BN2399445

COUPLING

Grooved/HB 3"

1шт.

16

814-16130

BOLT,Hex, M16 x 2 x 130mm, Cl 8.8

8шт.

17

832-46416

NUT,M16 x 2, Cl 8

8шт.

18

BN2397909-001

FILTER SCREEN,6 Mesh SS Screen

LSS-306

1шт.

22

BN72488

LUBE NIPPLE

LUBRICATOR 3"NPT x 4" BI #40

3шт.

23

BN85677

REDUCER

Bush 3 X 2 Poly

1шт.
