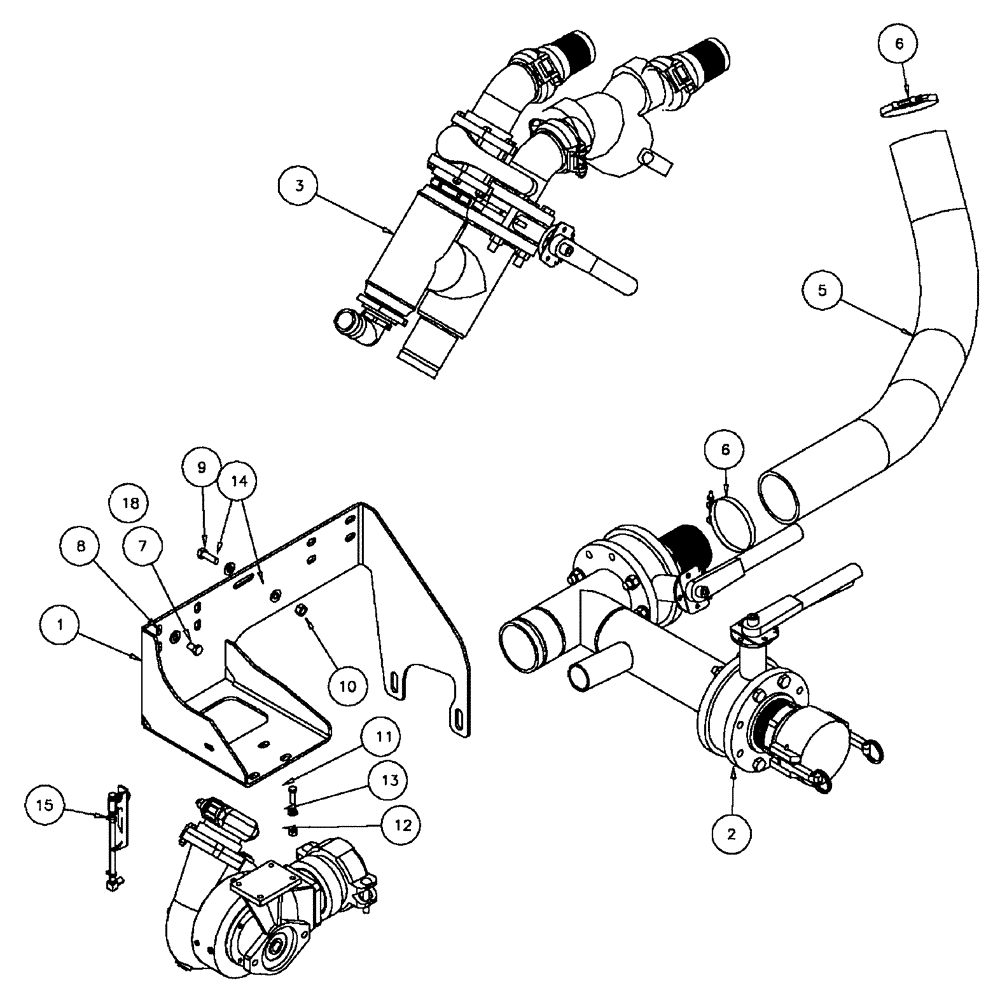

Запчасти Case IH FLX610 (05-032) - PUMP AND MANIFOLDS GROUP Liquid Plumbing

1

BN325839

MOUNTING PLATE

Pump & Manifolds

1шт.

2

NS

NOT SERVICED

Assembly, Suction Manifold

1шт.

See Fig. 05-033

1шт.

3

BN325862

Pressure Manifold

1шт.

See Fig. 05-034

1шт.

4

BN325868

Group, 520A, Product

1шт.

See Fig. 05-035

1шт.

5

BN2390846

HOSE,4.00" ID

Suction AG, 2.333

1шт.

6

BN2403396

CLAMP

T-Bolt Band 4.72"

2шт.

7

428-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 8

1/2-20 X .75, HH, GR8

8шт.

8

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

8шт.

9

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

1шт.

10

100038

NUT,M12 x 1.75, Cl 8

1шт.

11

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

12

86528579

NUT,M8 x 1.25

4шт.

13

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

14

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

15

NS

NOT SERVICED

Group, Sight Gauge, PRDT Pump

1шт.

See Fig. 05-036

1шт.

18

ZPX27136

SEALANT, THREAD

Adhesive, 271

1шт.
