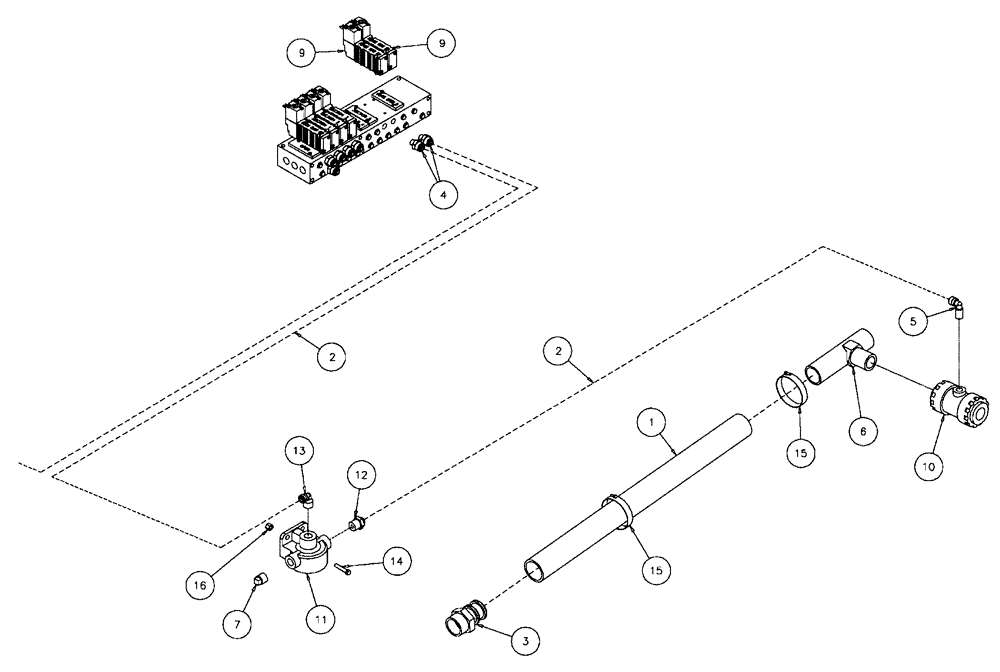

Запчасти Case IH FLX610 (05-031) - FENCE ROW LH/RH GROUP, 2" WET Liquid Plumbing

1

BN53842

HOSE,38.10 mm ID Bulk

Discharge

1шт.

2

BN2393054

TUBE,1/4" X 16' BULK, SAE J844, BLUE

Air, Synflex 1/4" Blue, Bulk

100шт.

3

BN305163

FITTING,2" - 11-1/2 Male NPT x 1-1/2" Hose Barb, Poly

2" NPT x 1.5" Hose Barb

2шт.

4

BN2399402

ADAPTER

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

2шт.

5

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

2шт.

6

BN2390521

FITTING,1" x 1-1/2" 90 Degree Poly Hose Barb Elbow

1" MPT x 1 1/2" Hose Barb, Poly

2шт.

7

BN317609

PLUG

3/8, Ploypropylene

2шт.

8

NSS

NOT SOLD SEPARAT

Switch, Fence Row

1шт.

See Fig. 01-002

1шт.

9

BN325786

VALVE

Pneumatic, 4-Way, w/Solenoid

2шт.

10

342271A1

RESTRICTOR VALVE,1" x 3/4" Poly Pinch Valve

poly pinch 1" x .75"

2шт.

11

342977A1

VALVE

Quick Release, Poly

2шт.

12

343100A1

HYD CONNECTOR

tube MC140380

2шт.

13

343101A1

HYD CONNECTOR

Tube ME140380

2шт.

14

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

4шт.

15

87485001

CLAMP,1.31" - 2.25"

#28, Stainless Steel

4шт.

16

353308

NUT,M6 x 1.0, Cl 8

4шт.
