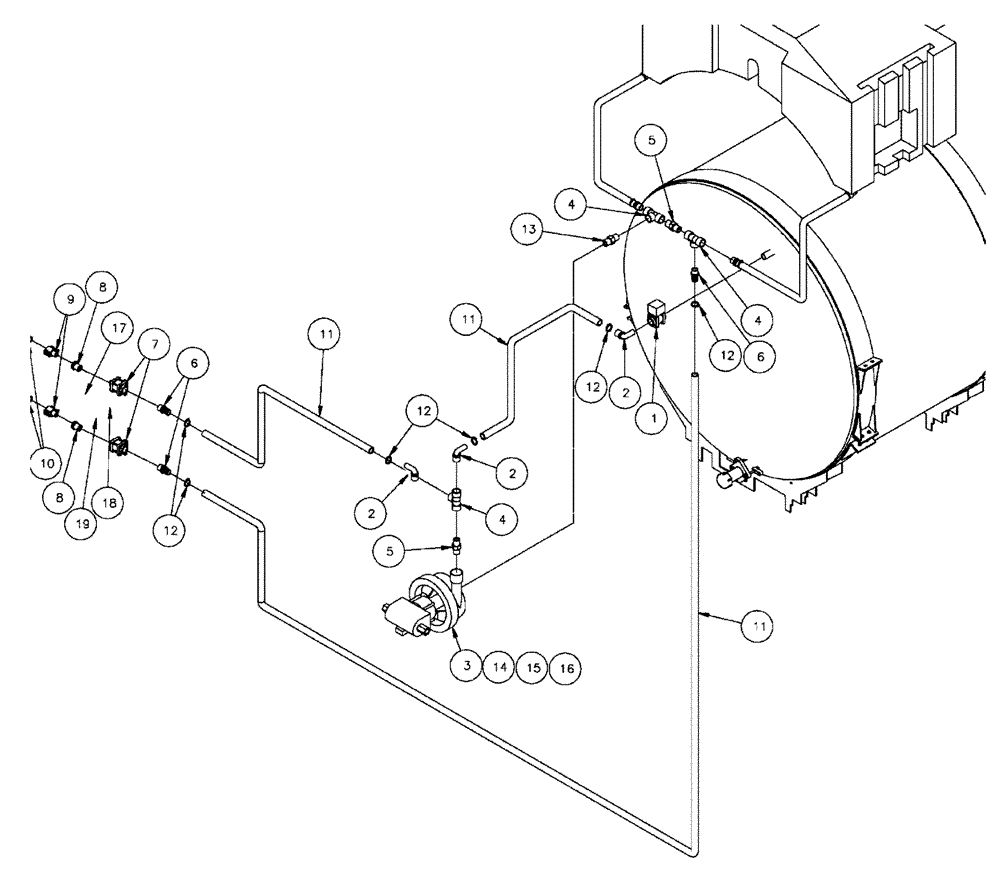

Запчасти Case IH FLX610 (05-018) - WASH DOWN PLUMBING, INTERNAL Liquid Plumbing

1

87389559

VALVE

Electric, 1" Ball

1шт.

2

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

3шт.

3

87394224

PACKAGE

Pump, Centrifugal Water

1шт.

BN2397631-001

CASING

Volute 34907

1шт.

Service Parts For Ref. 3

1шт.

BN2397631-002

REPAIR KIT

Pump 35745

1шт.

Service Parts For Ref. 3

1шт.

BN2397631-003

IMPELLER

1шт.

Service Parts For Ref. 3

1шт.

BN2397631-004

SUPPORT

Mounting

1шт.

Service Parts For Ref. 3

1шт.

BN2397631-005

BEARING

Bearing

1шт.

Service Parts For Ref. 3

1шт.

BN2397631-006

SEAL KIT

1шт.

Service Parts For Ref. 3

1шт.

BN2397631-007

CHECK VALVE

1шт.

Service Parts For Ref. 3

1шт.

BN2397631-008

REPAIR KIT

By-Pass Valve

1шт.

Service Parts For Ref. 3

1шт.

BN2397631-009

HYDRAULIC MOTOR

1шт.

Service Parts For Ref. 3

1шт.

4

BN73629

TEE

1" Poly Pipe

3шт.

5

BN73648

NIPPLE

1" Short Poly Pipe

2шт.

6

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

3шт.

7

BN2395215

HYDRAULIC VALVE

Ball 1" Poly

2шт.

8

BN53665

BUSHING

1" x .75 Poly

2шт.

9

BN2393335

COUPLING

B 3/4" Poly

2шт.

10

BN2403684

FITTING,3/4" Adapter x 3/4" Garden Hose Female Thread

Garden Hose

2шт.

11

BN2393068

TUBE

1" Suction Style K

22шт.

12

BN310446

HOSE CLAMP

#12, Stainless Steel

6шт.

13

BN73656

NIPPLE,1-1/4" Male NPT x 1" Male NPT, Poly

1-1/4" NPT x 1" NPT, Poly

1шт.

14

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

15

BN50145

WASHER

3/8, FW, G5

2шт.

16

88902

NUT,3/8"-16

2шт.

17

BN55359

LOCK NUT,1/4"-20, SS

3шт.

18

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

3шт.

19

BN8195371

SHEET

Washdown Valve Mount

1шт.
