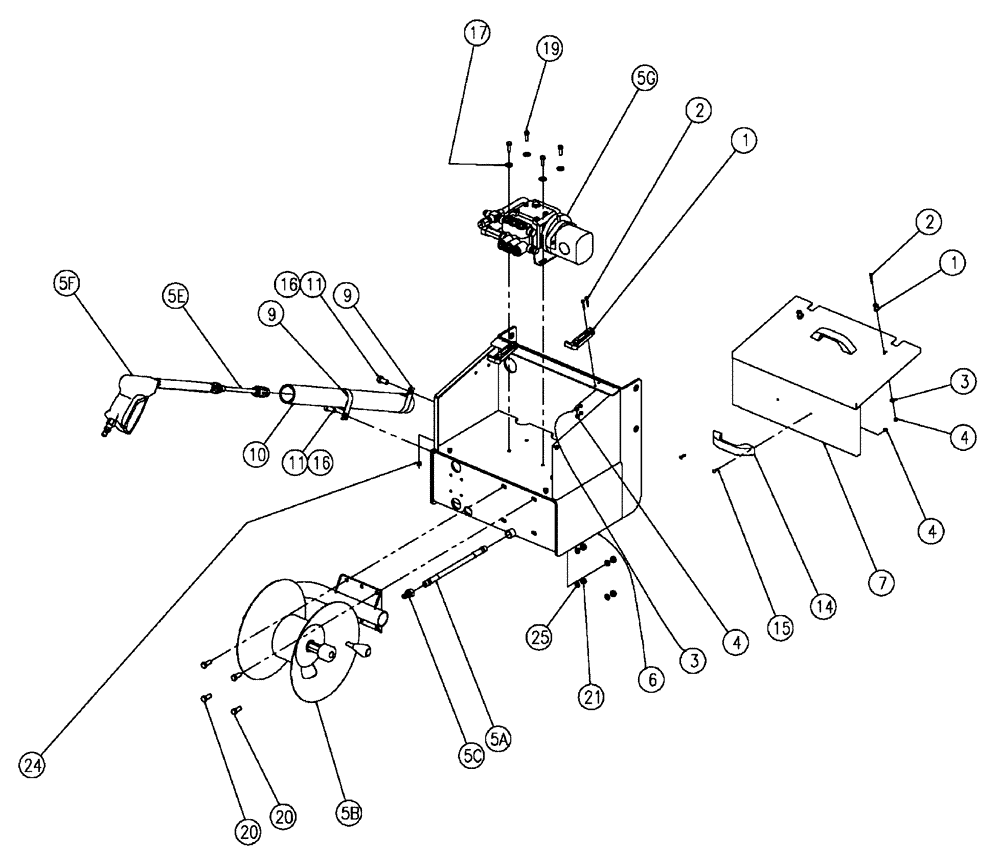

Запчасти Case IH FLX610 (05-015) - PRESSURE WASHER STATION GROUP Liquid Plumbing

1

BN309337

LATCH

Flexible Draw

2шт.

2

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10-24 X 1-1/4", BSH, SS

6шт.

3

BN310265

WASHER

10, Stainless Steel

6шт.

4

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

10шт.

5

BN311492

WASHER

Pressure, 3 GPM 2000 PSI

1шт.

BN313238

SEAL KIT

Piston, Water Pump

1шт.

Service Parts For Ref. 5

1шт.

BN313239

CHECK VALVE

Kit, Water Pump

1шт.

Service Parts For Ref. 5

1шт.

344197A1

SEAL KIT

shaft, for hydraulic motor

1шт.

Service Parts For Ref. 5

1шт.

6

BN322548

BOX

W/M, Pressure Washer

1шт.

7

BN311521

COVER

W/M, Pressure Washer

1шт.

9

87266015

CLAMP

Vinyl Coated, 2 1/4"

2шт.

10

86986621

PIPE

2" PVC x 26.5" Grey

1шт.

11

BN50691

BOLT,Hex, 1/2" - 13 x 1", SST

1/2"-13 x 1, Stainless Steel

2шт.

14

BN311626

HANDLE

Molded Grab, Black

2шт.

15

BN311631

BOLT,#10 - 24 x 3/4", SST

10-24 x .75, BSH, Stainless Steel

4шт.

16

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

2шт.

17

BN50142

WASHER,5/16", Stainless Steel

4шт.

19

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

4шт.

20

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

21

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

24

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

25

BN50146

WASHER,3/8", Stainless

4шт.
