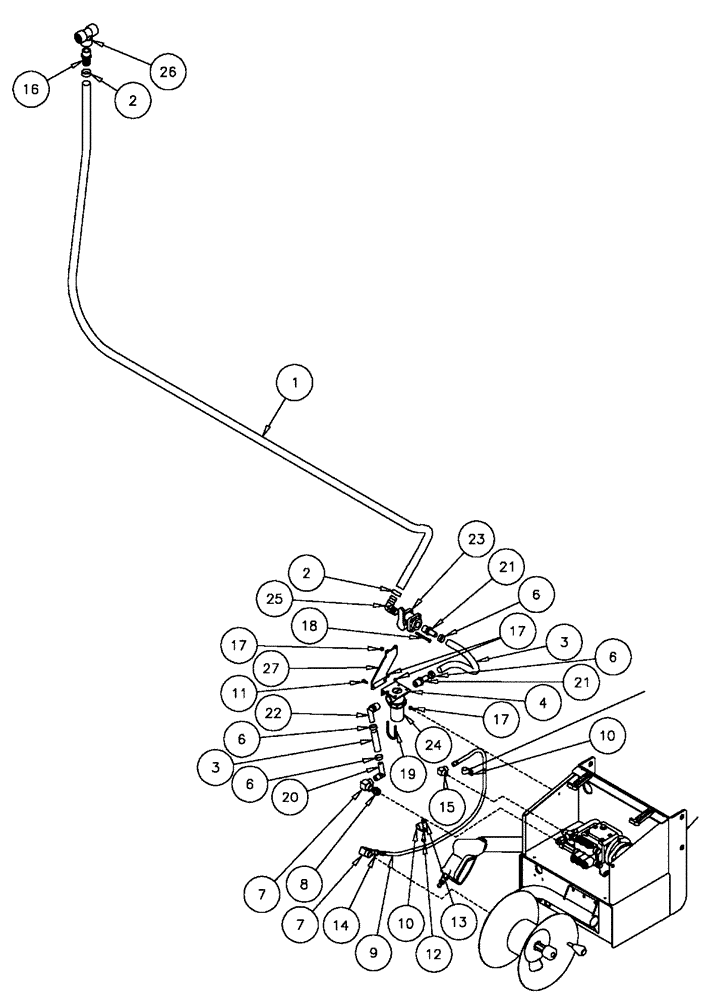

Запчасти Case IH FLX610 (05-013) - WASH DOWN PLUMBING GROUP Liquid Plumbing

1

BN2393068

TUBE

1" Suction Style K

11.58шт.

2

BN310446

HOSE CLAMP

#12, Stainless Steel

2шт.

3

BN27905

HOSE,19.05mm ID x 304.8mm L

EPDM 3/4" ID x 12"

1шт.

4

BN304533

MOUNTING PLATE

Strainer

1шт.

6

BN310446

HOSE CLAMP

#12, Stainless Steel

4шт.

7

BN311525

FITTING

08 NPTF-08 NPTF 90

2шт.

8

BN311603

COUPLING

3/4-11.5 NHM, 1/2-14 NPTM

1шт.

9

BN311605

HOSE,39.00"

1шт.

10

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

11

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

2шт.

12

BN50254

BOLT,3/8"-16 x 1", Stainless

1шт.

13

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

1шт.

14

BN51102

FITTING

Adapter, 1/2NPT x 3/8NPT, STL

1шт.

15

BN51128

ADAPTER

06 nptf - 06 nptf 90º

1шт.

16

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

17

BN55359

LOCK NUT,1/4"-20, SS

6шт.

18

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

2шт.

19

BN68011

U-BOLT

BOLT "U" 1/4-20 SS, 1" pipe

2шт.

20

BN73519

ELBOW

1/2" NPT x 3/4" Hose Barb

1шт.

21

BN73561

FITTING

Barb, 3/4 NPT X 3/4 HS

1шт.

22

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

1шт.

23

BN73564

VALVE

3/4" Ball Poly 2 Way

1шт.

24

BN73567

FILTER STRAINER

3/4"

1шт.

25

BN73575

FITTING

Barb, 3/4" X 1" SHK x 90º

1шт.

26

BN73629

TEE

1" Poly Pipe

1шт.

27

86986734

BRACKET

Valve, Wash Down

1шт.
