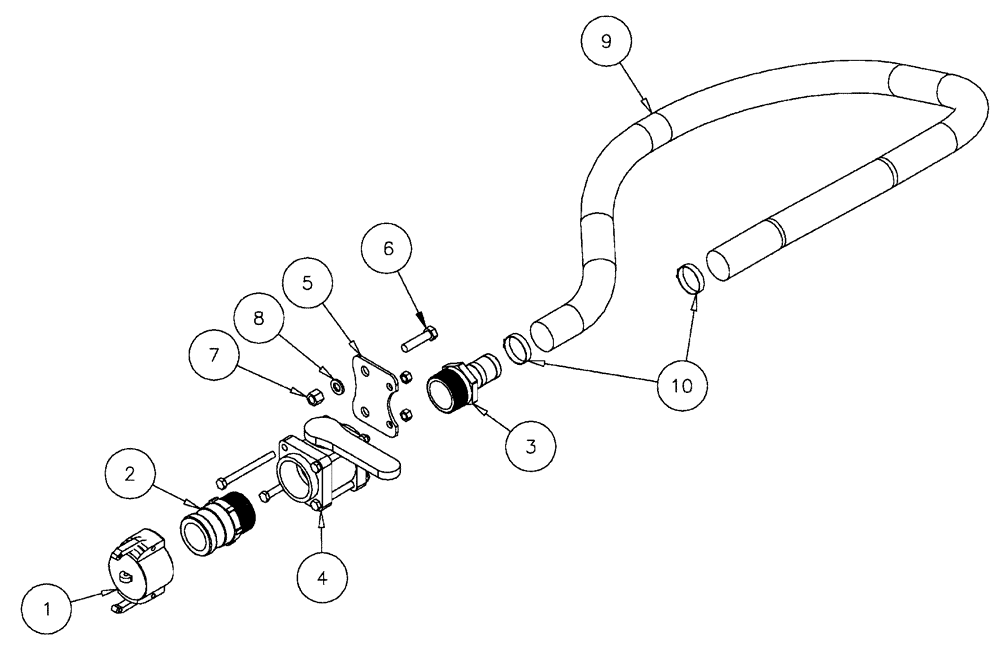

Запчасти Case IH FLX610 (05-012) - FOAM TANK FILL VALVE GROUP Liquid Plumbing

1

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

2

BN2396382

COUPLING,2" Male Adapter-2" Male Thread

F 2" Poly

1шт.

3

BN305163

FITTING,2" - 11-1/2 Male NPT x 1-1/2" Hose Barb, Poly

2" NPT x 1.5" Hose Barb

1шт.

4

BN317387

VALVE,2" Standard Port Valve

2" Standard

1шт.

5

343089A1

BRACKET, SUPPORTING

mount, fill valve

1шт.

6

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

7

100038

NUT,M12 x 1.75, Cl 8

2шт.

8

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

9

BN317410

HOSE,1.50" ID x 65.00"

EPDM

1шт.

10

BN310448

HOSE CLAMP

#28, Stainless Steel

2шт.
