Запчасти Case IH FLX610 (05-010) - FOAM TANK Liquid Plumbing

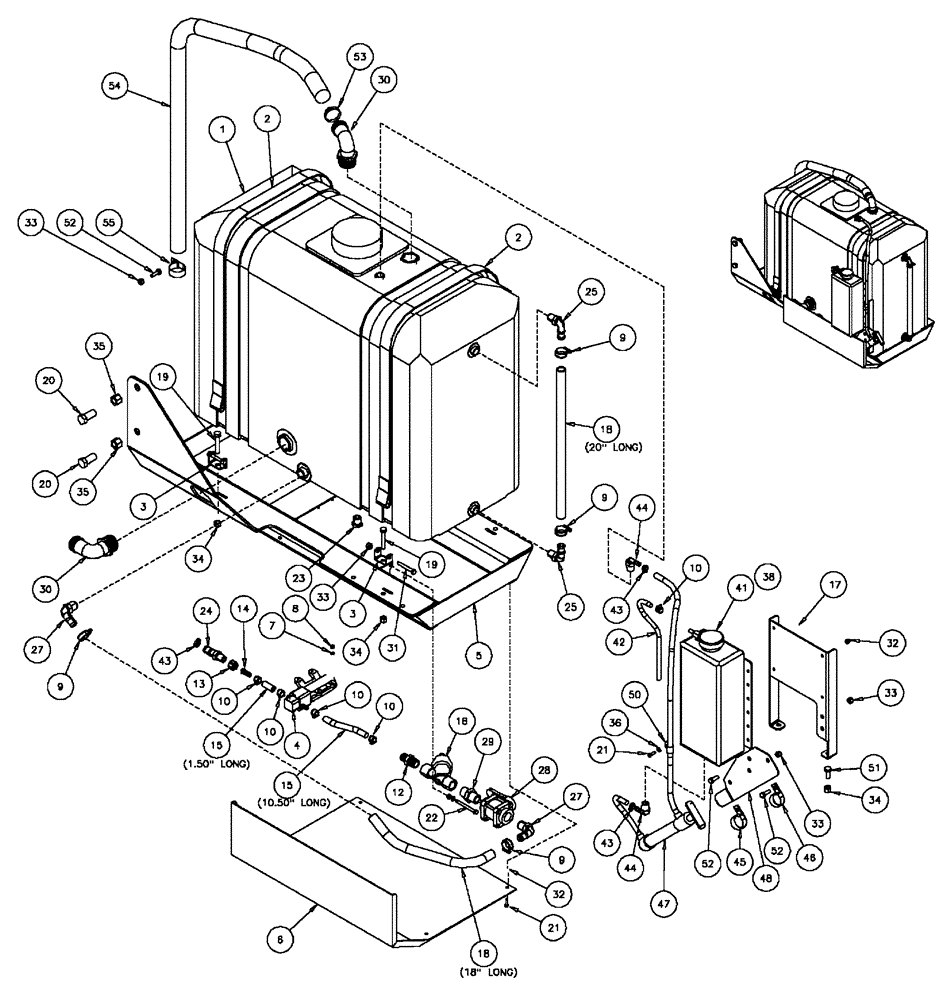

Схема запчастей Case IH FLX610 - (05-010) - FOAM TANK Liquid Plumbing
13
23
3
22
25
12
45
8
33
4
17
36
31
53
34
30
52
5
15
24
28
44
1
50
2
9
9
41
52
43
43
10
33
33
10
54
15
10
35
6
10
19
30
9
33
7
27
18
20
10
43
19
51
35
14
18
9
48
55
21
32
52
25
34
47
21
20
2
48
32
3
27
29
34
44
42
18
38

Артикул

Название

Примечание

Количество

1

BN323080

TANK

70 Gal.Poly

1шт.

2

87268267

STRAP

38 mm x 1570 mm, Flateye

2шт.

1b

BN314276

COVER

6.00, W/BREATHER

1шт.

3

BN324375

BRACKET

Foam Tank Strap

4шт.

4

87727677

PUMP,12V

Diaphragm, 1 GPM, 12V, Foam Transfer

1шт.

5

342381A1

FRAME

Foam Tank

1шт.

6

344244A1

SHIELD

Bent, Pump/Valve

1шт.

7

BN310265

WASHER

10, Stainless Steel

4шт.

8

BN303136

NUT

10-32, NLN, G5

4шт.

9

BN310446

HOSE CLAMP

#12, Stainless Steel

6шт.

10

BN310450

HOSE CLAMP

#3, Stainless Steel

5шт.

12

343436A1

PIPE FITTING,3/4" Male Thread x 3/8" Hose Barb

3/4" MPT X 3/8" Hose Barb, Poly

1шт.

13

BN325352

CAP

Nozzle

1шт.

14

BN325353

FITTING

Barb, Nozzle Cap

1шт.

15

BN75913

TUBE

3/8 Eva

1шт.

16

BN324892

FILTER STRAINER,3/4" x 3/4" Y Strainer

3/4" "Y" 40 Mesh

1шт.

17

343088A1

BRACKET, SUPPORTING

Mount, Soap Bottle

1шт.

18

BN52310

TUBE,0.75" ID

Wall Vinyl

1шт.

19

614-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8, Full Thd

4шт.

20

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

4шт.

21

120100

BOLT,M6 x 20mm, Cl 8.8

7шт.

22

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

2шт.

23

BN73502

PLUG

1/2" Pipe Poly

1шт.

24

BN325351

HYD CONNECTOR

Straight

1шт.

25

BN73519

ELBOW

1/2" NPT x 3/4" Hose Barb

2шт.

27

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

2шт.

28

BN73564

VALVE

3/4" Ball Poly 2 Way

1шт.

29

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

1шт.

30

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

2шт.

31

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

4шт.

32

353308

NUT,M6 x 1.0, Cl 8

7шт.

33

86528579

NUT,M8 x 1.25

8шт.

34

100037

LOCK NUT,M10 x 1.5, Cl 8

6шт.

35

280375

NUT,3/4"-10, GC

4шт.

36

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

38

1547924C1

CAP

coolant recovery bottle

1шт.

41

BN322944

TANK

6 Qt, Poly, Natural

1шт.

42

87266748

HOSE

3/8" x 10.5" Clear

1шт.

43

BN324022

HOSE CLAMP

#8, Stainless Steel

3шт.

44

BN325981

ELBOW

1/2" MPT x 3/8" Hose Barb, Poly

2шт.

45

BN325890

CLAMP

Vinyl Coated 1-9/16

1шт.

46

BN570018

CLAMP

Vinyl Coated 1-7/16

1шт.

47

BN325219

PUMP

Hand, Soap Tank

1шт.

48

BN325230

BRACKET

Mount, Hand Pump

1шт.

50

BN41859

CLAMP

9/16", Vinyl Covered

1шт.

51

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

2шт.

52

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

53

BN310448

HOSE CLAMP

#28, Stainless Steel

1шт.

54

BN309785

HOSE

Kanaflex 390SD, 1 1/2" x 13.8'

5шт.

55

BN304440

CLAMP

Vinyl Coated 1.75"

1шт.
