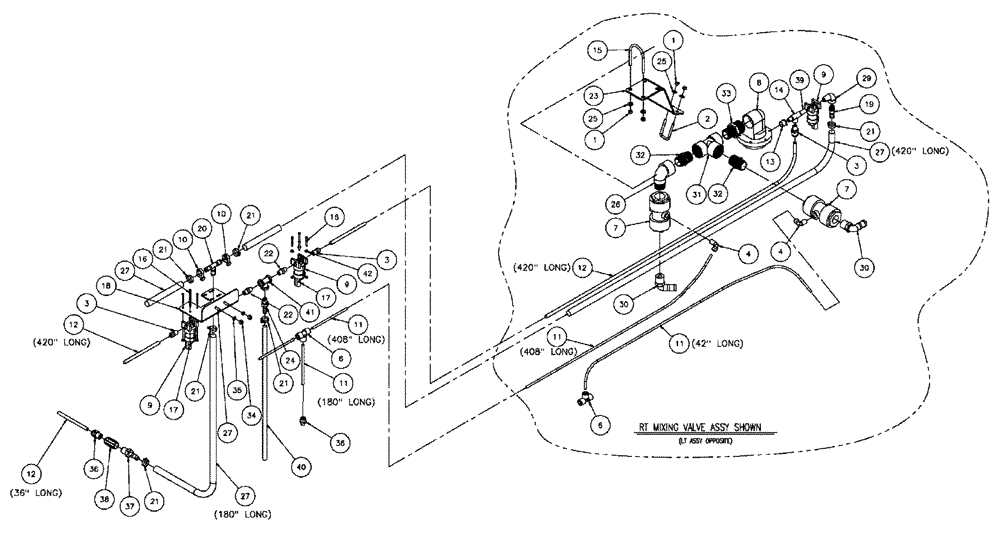

Запчасти Case IH FLX610 (05-009) - FOAM DELIVERY, 60/85 BOOM Liquid Plumbing

1

280129

NUT,1/4"-20

16шт.

2

BN23149

U-BOLT

1/4"-20, Square, 1.1" id x 2" Long

4шт.

3

BN2399403

ADAPTER

1/4" MPT x 3/8" OD Tube, Push Lock Fitting

4шт.

4

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

4шт.

5

87265139

WIRE HARNESS

RH Liquid Foamer

1шт.

6

BN2399414

UNION TEE

3/8" OD Tube, Push Lock Fitting

3шт.

7

342271A1

RESTRICTOR VALVE,1" x 3/4" Poly Pinch Valve

poly pinch 1" x .75"

4шт.

8

BN307636

CHAMBER

Foam Mixing

2шт.

9

BN307938

VALVE

Solenoid, 1/4 NPT

4шт.

10

BN309265

CABLE

Tie

3шт.

11

BN311113

FLEXIBLE HOSE,45.00"

Synflex

2шт.

12

BN311114

HOSE,0.38" ID x 45.00'

Synflex

2шт.

13

BN313188

BUSHING

3/8NPT-1/4NPT, SS

2шт.

14

BN313189

TEE

4-4-4, NPT, SS

2шт.

15

BN313369

U-BOLT

BOLT "U" 1/4-20, 1 1/2 Pipe

4шт.

16

BN317051

BOLT

6-32 X 1.25"

8шт.

17

BN317053

LOCK NUT

6-32 Nylon Lock

8шт.

18

87266013

PLATE

Solenoid Valve Mount

1шт.

19

BN324008

FITTING

1/4" NPT x 1/2" Hose Barb, Poly

2шт.

20

BN324009

TEE

All 1/2" HB, Poly

1шт.

21

BN324022

HOSE CLAMP

#8, Stainless Steel

7шт.

22

86986808

NIPPLE

1/4" Short, Poly

2шт.

23

343092A1

BRACKET, SUPPORTING

mount, foam mix valve, 60/85'

2шт.

24

86986810

FITTING

Hosebarb, 3/8" X 1/4" NPT

1шт.

25

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

0.281 X 0.625 X 0.065 HTS DOR HDN

16шт.

26

BN53682

ELBOW

90-Street-1" Poly

2шт.

27

BN54239

HOSE,12.7mm ID x 3048mm L

Black-1/2 EPDM, Discharge

85шт.

28

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

29

BN73017

ELBOW

90 Street-1/4" SS

2шт.

30

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

4шт.

31

BN73629

TEE

1" Poly Pipe

2шт.

32

BN73648

NIPPLE

1" Short Poly Pipe

4шт.

33

BN73656

NIPPLE,1-1/4" Male NPT x 1" Male NPT, Poly

1-1/4" NPT x 1" NPT, Poly

2шт.

34

353308

NUT,M6 x 1.0, Cl 8

2шт.

35

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

36

BN2399402

ADAPTER

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

36

BN2399412

ADAPTER

Tube MC38038

1шт.

37

BN323125

FITTING

Hosebarb, 3/8"NPT X 1/2" HS

1шт.

38

343552A1

COUPLING,3/8" Poly Pipe Coupling

3/8" poly

1шт.

39

BN322427

VENTURI

Foamer Assembly

2шт.

40

BN75913

TUBE

3/8 Eva

27шт.

41

86986807

TEE

1/4" Poly

1шт.

42

86511189

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

4шт.
