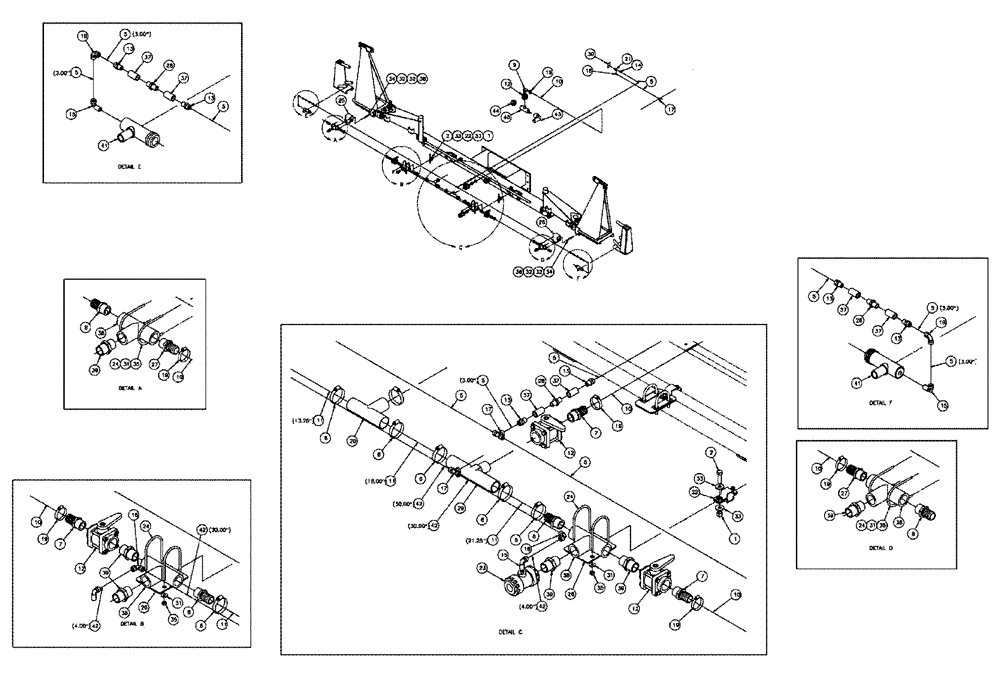

Запчасти Case IH FLX610 (05-002) - LIQUID RECOVERY 70’/60" Liquid Plumbing

1

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

2

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

4

BN2290335

LOOM

Split 1/4" id #1783

40шт.

5

BN2292089

AIR INTAKE TUBE

Synflex, 1/4" Bulk

100шт.

6

BN76093

HOSE CLAMP

#28, SS

6шт.

7

87744535

FITTING

1" NPT x 1-1/4" Hose Barb, Poly

3шт.

8

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

4шт.

9

BN67315

FITTING,1" Male Thread x 1-1/4" 90 Degree Hose Barb

1" NPT x 1-1/4" Hose Barb, Poly

1шт.

10

342228A1

HOSE,31.8mm ID x 30480mm L

Bulk, 1-1/4" Suction

25шт.

11

BN53842

HOSE,38.10 mm ID Bulk

Discharge

1шт.

12

BN2395215

HYDRAULIC VALVE

Ball 1" Poly

4шт.

13

BN2399401

ADAPTER

Male, 1/4" Tube

6шт.

14

BN2399402

ADAPTER

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

15

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

3шт.

16

BN2399405

90 ELBOW

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

17

BN2399408

UNION TEE

Tube UTC140

3шт.

18

BN2399409

90 ELBOW

1/4" OD Tube, Push Lock Fitting

4шт.

19

BN310446

HOSE CLAMP

#12, Stainless Steel

6шт.

20

BN2402038

TEE

1 1/2 HB Poly

1шт.

21

BN2402091

VALVE

Air Toggle 3-Way

1шт.

22

BN2403368

CLAMP

Nozzle AA111SQ-1

2шт.

23

342271A1

RESTRICTOR VALVE,1" x 3/4" Poly Pinch Valve

poly pinch 1" x .75"

1шт.

24

BN303201

U-BOLT

BOLT "U" 1/4 x 2.38R x 3.75

8шт.

25

BN304511

SUPPORT

Nozzle Recovery

2шт.

26

BN304512

PLATE

Recovery Nozzle

2шт.

27

BN73740

PIPE FITTING,1-1/2" Male Thread x 1-1/4" Hose Barb

Barb, 1-1/2 NPT x 1-1/4HB

2шт.

28

BN307985

VALVE

Check, 1-2.5 CRK, 1/4 P

3шт.

29

BN324828

FITTING,1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" Male Thread Hose Barb Tee

1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" MPT, Poly

1шт.

30

BN313943

DECAL

Nozzle Recovery System

1шт.

31

BN50138

WASHER,1/4", SS

16шт.

32

BN50142

WASHER,5/16", Stainless Steel

16шт.

33

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

4шт.

34

BN50476

BOLT,5/16"-18 x 0.75", Stainless

8шт.

35

BN55359

LOCK NUT,1/4"-20, SS

16шт.

36

BN55361

NUT,5/16"-18, Nylon, Stainless

8шт.

37

BN73015

COUPLING

1/4" NPT SS Full

6шт.

38

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

4шт.

39

BN73741

NIPPLE

1-1/2" NPT x 1" NPT, Poly

6шт.

40

BN8195384

LUBE NIPPLE

LUBRICATOR Modified 2"

1шт.

41

BN8195385

TEE

Modified (Nozzle)

2шт.

42

BN2393052

TUBE,1/4" X 100' BULK, SAE J844, YELLOW

Air, Synflex 1/4" Yellow, Bulk

5.66шт.

43

BN73789

FITTING

Elbow-2" 90 Degree Poly

1шт.

44

BN2293320

CAP

2" Poly

1шт.
