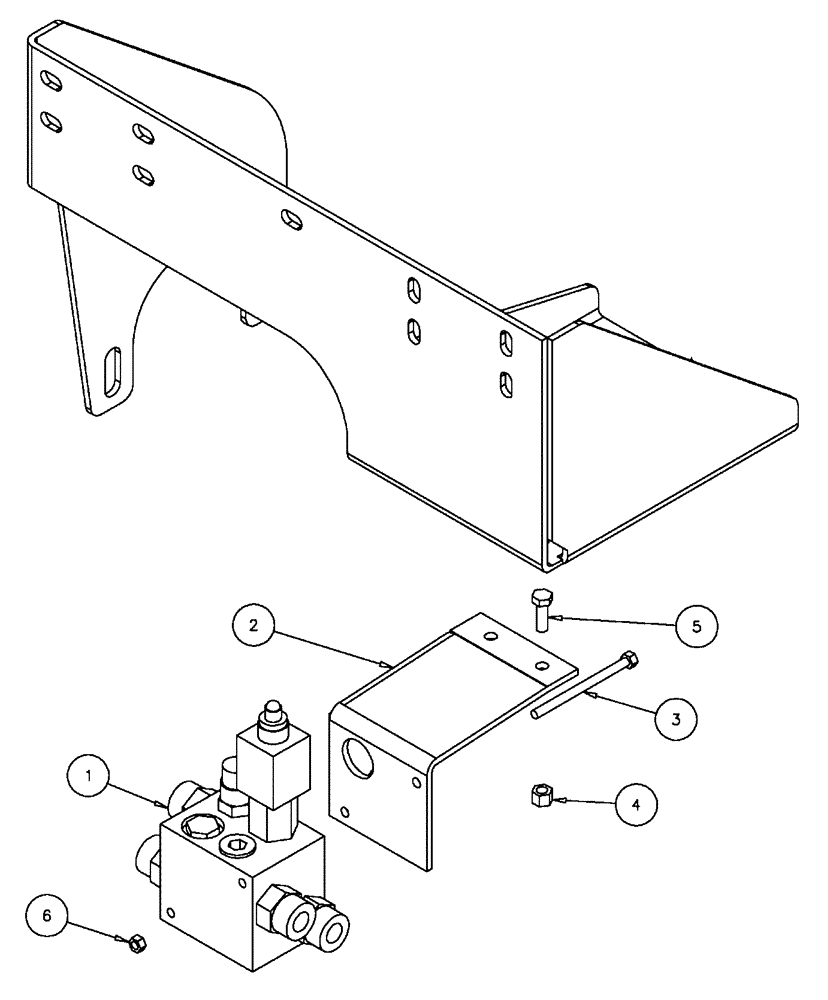

Запчасти Case IH FLX610 (04-001) - PUMP CONTROL VALVE Hydraulic Plumbing

1

343993A1

HYDRAULIC VALVE

Product Control, PWM

1шт.

See Fig. 04-002

1шт.

2

87265367

MOUNTING PLATE

Control Valve

1шт.

3

BN320110

BOLT

5/16-18 X 4.5, HH. SS

2шт.

4

BN320644

NUT,Hex, M10 - 1.5, NLN, SST

M10-1.5, NLN, SS

2шт.

5

BN322388

SCREW,Hex, M10 x 1.5 x 30mm, SST

M10-1.5 X 30, HH, SS

2шт.

6

BN55361

NUT,5/16"-18, Nylon, Stainless

2шт.
