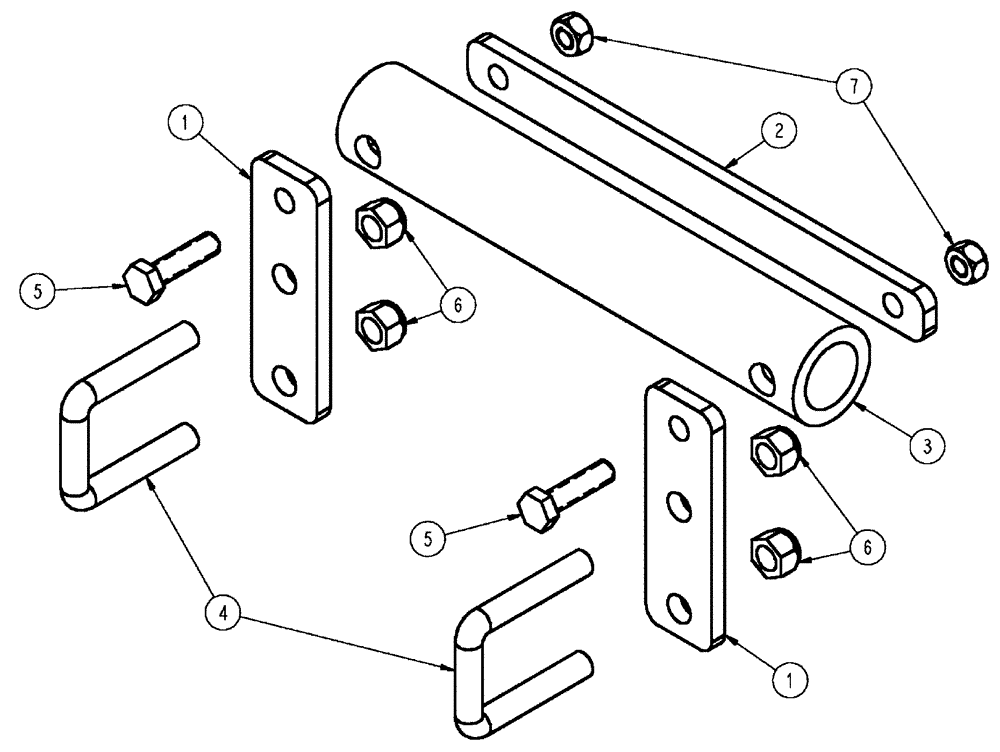

Запчасти Case IH FLX610 (03-034) - DOOR STOP, RH BOOM MOUNTED (09) - BOOMS

1

BN323951

BRACKET

Mount, Door Stop

2шт.

2

BN324535

RETAINER

Door Bumper

1шт.

3

BN324536

BUMPER

Door Stop

1шт.

4

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep

2шт.

5

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

7

86528579

NUT,M8 x 1.25

2шт.
