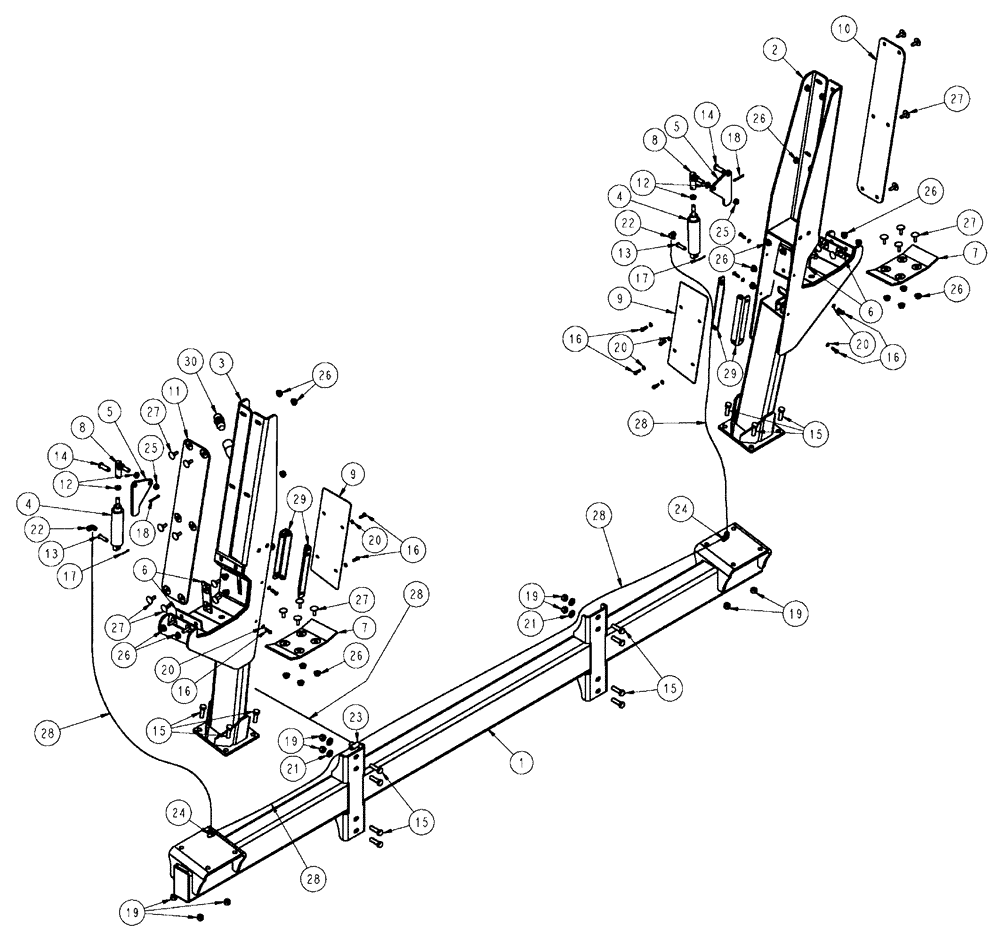

Запчасти Case IH FLX610 (03-032) - BOOM CRADLE GROUP, 4 WHEELER (09) - BOOMS

1

343714A1

CROSSMEMBER

cradle

1шт.

2

343971A1

CRADLE

boom, LH, 4 wheeler

1шт.

3

343972A1

CRADLE

boom, RH, 4 wheeler

1шт.

4

343977A1

HYDRAULIC CYLINDER,11.11mm Rod, 50.8mm Stroke

1.50" Bore x 2, Air

2шт.

5

343980A1

LOCK

Boom Cradle

2шт.

6

343981A1

PAD

Boom Rest, Small

4шт.

7

343982A1

PAD

Boom Rest, Cradle

2шт.

8

343988A1

BALL JOINT

7/16-20 /Grommet

2шт.

9

344232A1

COVER

Cradle Lock

2шт.

10

87266411

PAD

Boom Cradle, Upper, LH

1шт.

11

87266412

PAD

Boom Cradle, Upper, RH

1шт.

12

425-157

JAM NUT,Jam, 7/16"-20, G5

4шт.

13

439-1622

HEADED PIN,3/8" x 1 3/8"

2шт.

14

439-1824

HEADED PIN,1/2" x 1 1/2", G2

2шт.

15

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

16шт.

16

120100

BOLT,M6 x 20mm, Cl 8.8

16шт.

17

733-2520

COTTER PIN,M2.5 x 20

2шт.

18

733-4032

COTTER PIN,M4 x 32

2шт.

19

100038

NUT,M12 x 1.75, Cl 8

16шт.

20

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

16шт.

21

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

22

BN2399405

90 ELBOW

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

2шт.

23

BN2399408

UNION TEE

Tube UTC140

1шт.

24

BN2399409

90 ELBOW

1/4" OD Tube, Push Lock Fitting

2шт.

25

BN305109

FLANGE BOLT,7/16" - 20, Gr 8

7/16-20, FLN, G8

2шт.

26

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

28шт.

27

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

28шт.

28

BN2292089

AIR INTAKE TUBE

Synflex, 1/4" Bulk

21.25шт.

29

87266408

COVER

mount

4шт.

30

363226A1

BUMPER

door

1шт.
