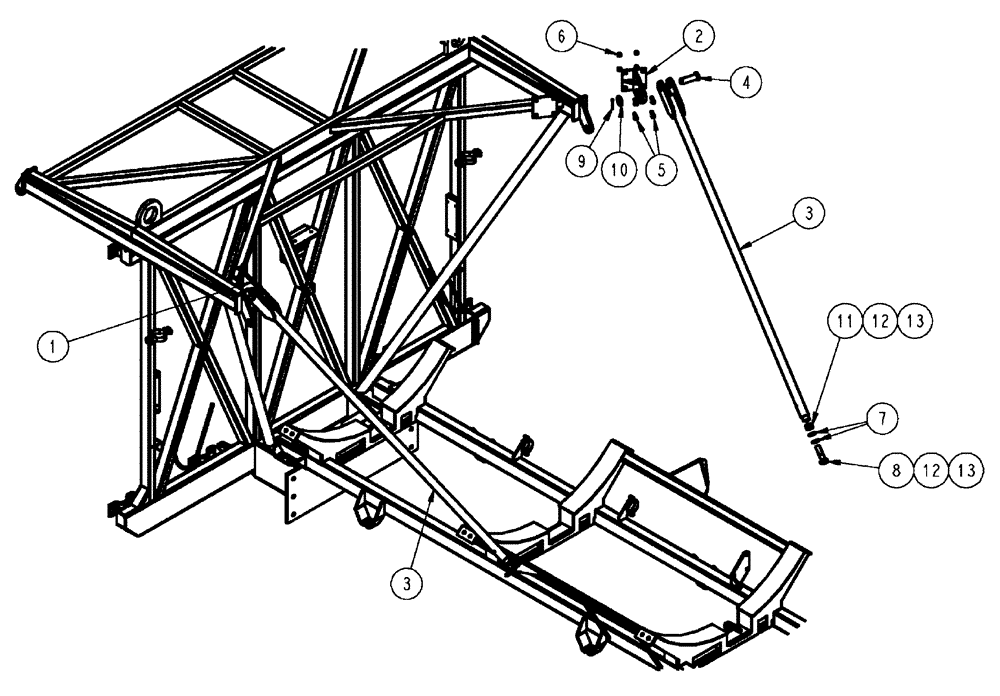

Запчасти Case IH FLX610 (03-030) - MAST BRACE GROUP (09) - BOOMS

1

87266424

ANCHOR

Support, RH

1шт.

2

87266425

ANCHOR

Support, LH

1шт.

3

87267111

SUPPORT

Mast, 520A

2шт.

4

439-52064

HEADED PIN,1 1/4" x 4"

2шт.

Anchor, Support, LH

1шт.

5

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

8шт.

6

100038

NUT,M12 x 1.75, Cl 8

8шт.

7

87016608

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

4шт.

8

87342947

BOLT

Hex, 1"-8 x 4, G8, Full Thrd

2шт.

9

432-1632

COTTER PIN,1/4" x 2"

2шт.

10

87016611

WASHER,32.8mm ID x 56.5mm OD x 5mm Thk

2шт.

11

BN50092

NUT

Hex, 1"-8 UNC, Plated, G5

4шт.

12

BN1243001

LOCTITE

243-31 Removable

1шт.

13

BN307971

SEALANT

thread

1шт.
