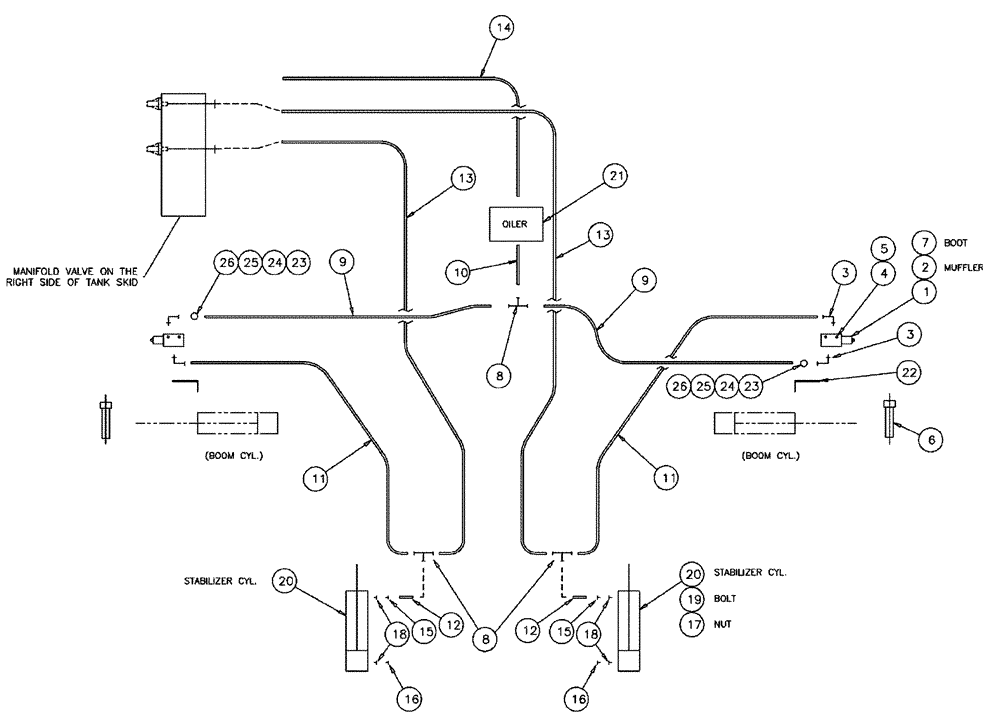

Запчасти Case IH FLX610 (03-026) - STABILIZER PLUMBING (09) - BOOMS

1

87267023

PRESSURE SWITCH

Pneumatic, Air Stabilizer

2шт.

2

BN316074

MUFFLER

1/8" Port

2шт.

3

BN2399405

90 ELBOW

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

4шт.

4

BN316803

SCREW,#10 - 24 x 1 1/2", SST

Mach-#10-24 X 1.5Ss

4шт.

5

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

4шт.

6

BN318115

PIN

Cylinder & Stabilizer

2шт.

7

BN316076

BOOT

Stabilizer Valve

2шт.

8

BN2399408

UNION TEE

Tube UTC140

3шт.

9

BN316079

AIR INTAKE TUBE

1/4" X 78"

2шт.

10

BN316786

AIR INTAKE TUBE

1/" X 9"

1шт.

11

BN316787

AIR INTAKE TUBE

1/4" X 36"

2шт.

12

BN316788

AIR INTAKE TUBE

-1/4" X 1.5"

2шт.

13

BN316789

TUBE

1/4" x 300"

2шт.

14

BN316790

AIR INTAKE TUBE

1/4" X 240"

1шт.

15

BN2399401

ADAPTER

Male, 1/4" Tube

2шт.

16

BN2401934

MUFFLER

Silencer, Air (SMC) 1/4"

2шт.

17

280980

NUT,7/16"-14, GC

4шт.

18

BN323191

FITTING

ADT. -4 NPT X -8 ORB

4шт.

19

413-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

4шт.

20

86986499

CYLINDER

Air 4.0 X 1.0 X 21.9

2шт.

21

NS

NOT SERVICED

Group, Air Mister

1шт.

See Fig. 03-027

1шт.

22

NS

NOT SERVICED

Stabilizer Mounts

2шт.

See Fig. 03-028

1шт.

23

BN53972

ELBOW

90, 1/8 (M) X 1/4 (F) NPT

2шт.

24

BN73015

COUPLING

1/4" NPT SS Full

2шт.

25

BN307985

VALVE

Check, 1-2.5 CRK, 1/4 P

2шт.

26

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

2шт.
