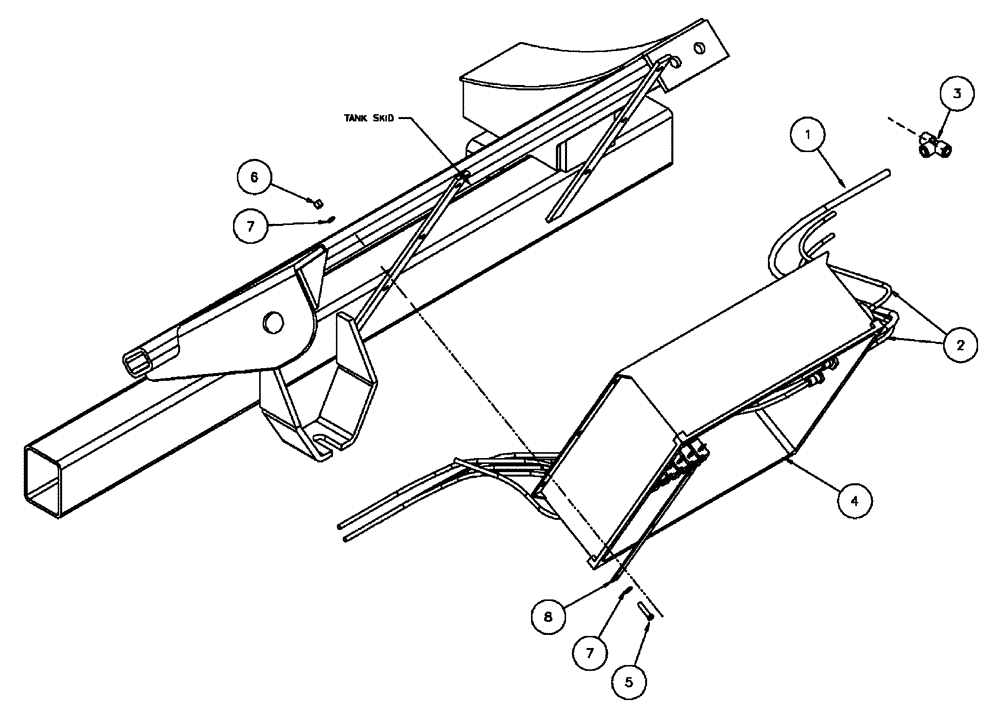

Запчасти Case IH FLX610 (03-025) - PNEUMATIC MANIFOLD (09) - BOOMS

1

BN2292088

AIR INTAKE TUBE

3/8" Black

7шт.

2

BN2292089

AIR INTAKE TUBE

Synflex, 1/4" Bulk

6шт.

3

BN2399414

UNION TEE

3/8" OD Tube, Push Lock Fitting

1шт.

4

BN325785

PNEUMATIC VALVE

Assembly, Pneumatic, Base 520A

1шт.

342973A1

MANIFOLD

pneumatic, 11 section

1шт.

Service Parts For Ref. 4

1шт.

342974A1

BOX

pneumatic valve

1шт.

Service Parts For Ref. 4

1шт.

342975A1

PLATE

pneumatic valve section cover

5шт.

Service Parts For Ref. 4

1шт.

86986803

GAUGE

0-30 PSI, 1/8" NPT

1шт.

Service Parts For Ref. 4

1шт.

BN2390775

GAUGE

Air 1 1/2" 0-100

1шт.

Service Parts For Ref. 4

1шт.

87388151

REGULATOR

Air Pressure

2шт.

Service Parts For Ref. 4

1шт.

BN2399401

ADAPTER

Male, 1/4" Tube

6шт.

Service Parts For Ref. 4

1шт.

BN324869

BULKHEAD

Union 1/4 Tube

3шт.

Service Parts For Ref. 4

1шт.

BN324870

BULKHEAD

Union 3/8 Tube

2шт.

Service Parts For Ref. 4

1шт.

BN325001

REGULATOR

Air Pressure (ADJ)

1шт.

Service Parts For Ref. 4

1шт.

BN325786

VALVE

Pneumatic, 4-Way, w/Solenoid

5шт.

Service Parts For Ref. 4

1шт.

5

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

6шт.

6

353308

NUT,M6 x 1.0, Cl 8

6шт.

7

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

12шт.

8

87267116

RETAINER

Enclosure

2шт.
