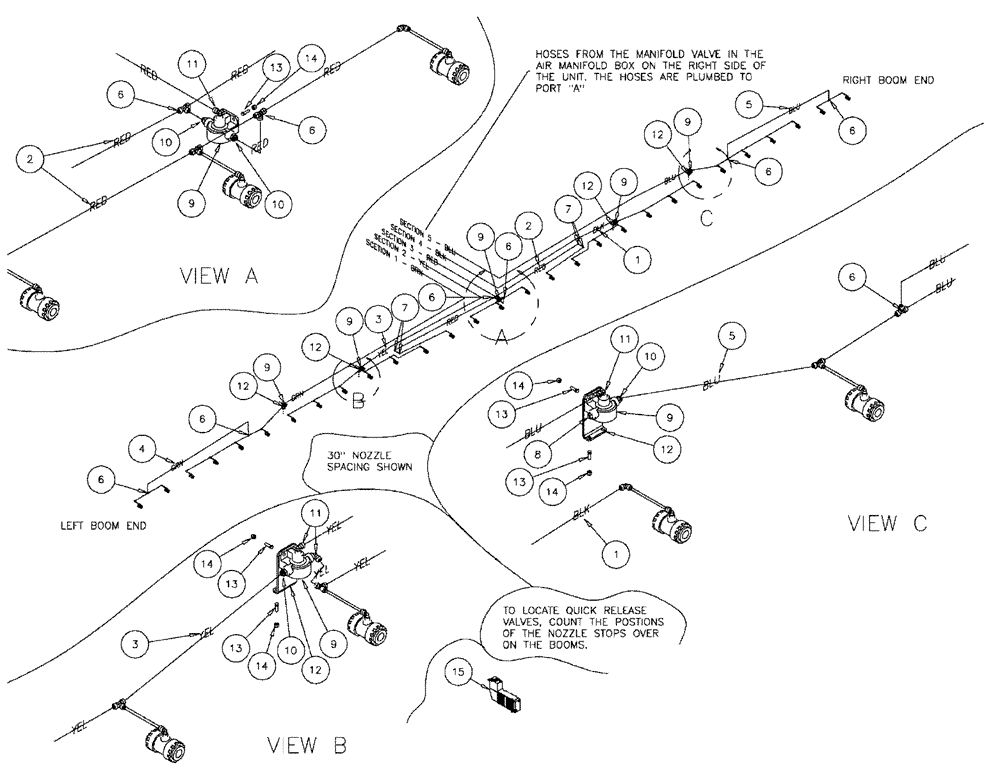

Запчасти Case IH FLX610 (03-020) - 5-SECTION 70 BOOM GROUP, PNEUMATIC COMPONENTS 30" SPACING (09) - BOOMS

1

BN2292089

AIR INTAKE TUBE

Synflex, 1/4" Bulk

42шт.

2

BN2393051

TUBE,1/4" X 500' BULK, SAE J844, RED

Air, Synflex 1/4" Red, Bulk

18шт.

3

BN2393052

TUBE,1/4" X 100' BULK, SAE J844, YELLOW

Air, Synflex 1/4" Yellow, Bulk

42шт.

4

BN2393053

TUBE,1/4" X 100' BULK, SAE J844, GREEN

Air, Synflex 1/4" Green

66шт.

5

BN2393054

TUBE,1/4" X 16' BULK, SAE J844, BLUE

Air, Synflex 1/4" Blue, Bulk

66шт.

6

BN2399408

UNION TEE

Tube UTC140

6шт.

7

BN2399409

90 ELBOW

1/4" OD Tube, Push Lock Fitting

4шт.

8

BN317609

PLUG

3/8,Ploypropylene

2шт.

9

342977A1

VALVE

Quick Release, Poly

5шт.

10

343100A1

HYD CONNECTOR

tube MC140380

6шт.

11

343101A1

HYD CONNECTOR

Tube ME140380

7шт.

12

343102A1

BRACKET, SUPPORTING

QR Valve, Boom

4шт.

13

120100

BOLT,M6 x 20mm, Cl 8.8

18шт.

14

353308

NUT,M6 x 1.0, Cl 8

18шт.

15

NS

NOT SERVICED

Pneum, 5 SEC., Valve COMP.

1шт.

See Fig. 06-023

1шт.
