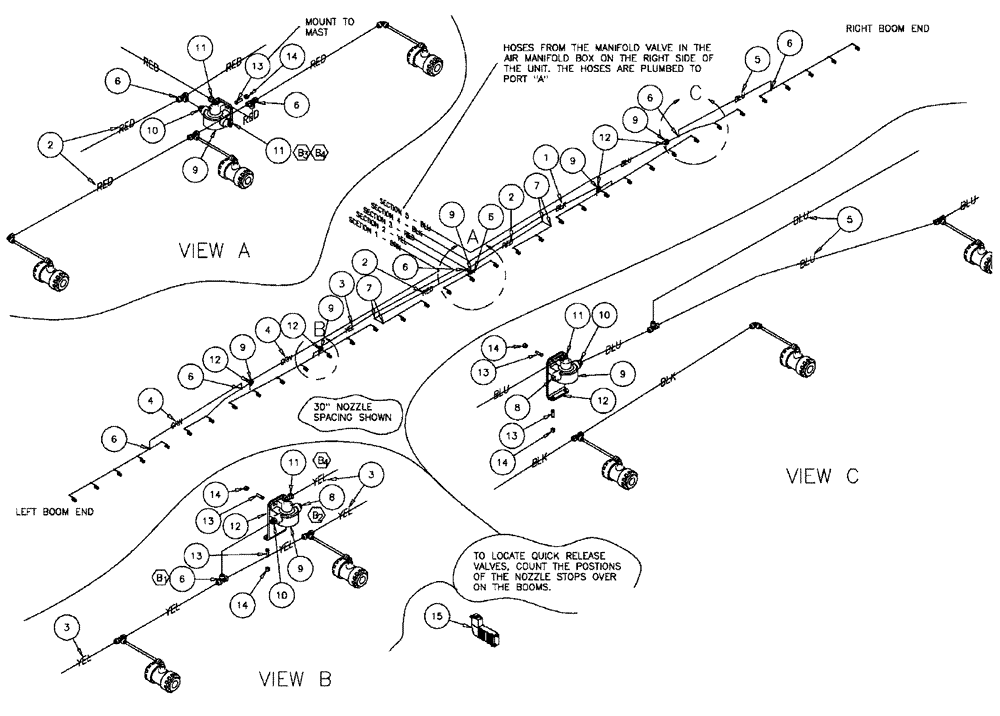

Запчасти Case IH FLX610 (03-018) - 5-SECTION 60/85 BOOM GROUP, PNEUMATIC COMPONENTS 30/60" SPACING (09) - BOOMS

1

BN2292089

AIR INTAKE TUBE

Synflex, 1/4" Bulk

42шт.

2

BN2393051

TUBE,1/4" X 500' BULK, SAE J844, RED

Air, Synflex 1/4" Red, Bulk

18шт.

3

BN2393052

TUBE,1/4" X 100' BULK, SAE J844, YELLOW

Air, Synflex 1/4" Yellow, Bulk

42шт.

4

BN2393053

TUBE,1/4" X 100' BULK, SAE J844, GREEN

Air, Synflex 1/4" Green

71шт.

5

BN2393054

TUBE,1/4" X 16' BULK, SAE J844, BLUE

Air, Synflex 1/4" Blue, Bulk

71шт.

6

BN2399408

UNION TEE

Tube UTC140

8шт.

7

BN2399409

90 ELBOW

1/4" OD Tube, Push Lock Fitting

4шт.

8

BN317609

PLUG

3/8, Ploypropylene

4шт.

9

342977A1

VALVE

Quick Release, Poly

5шт.

10

343100A1

HYD CONNECTOR

tube MC140380

5шт.

11

343101A1

HYD CONNECTOR

Tube ME140380

6шт.

12

343102A1

BRACKET, SUPPORTING

QR Valve, Boom

4шт.

13

120100

BOLT,M6 x 20mm, Cl 8.8

18шт.

14

353308

NUT,M6 x 1.0, Cl 8

18шт.

15

NS

NOT SERVICED

Pneumatic, 5 Section, Valve Comp

1шт.

See Fig. 03-023

1шт.
