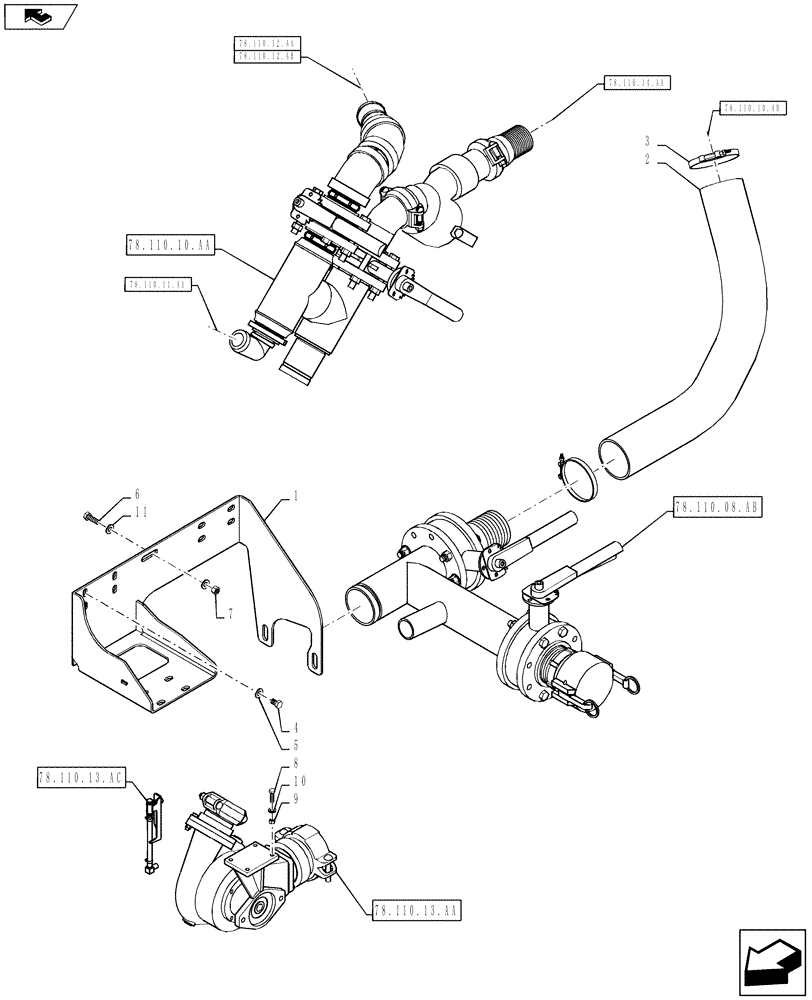

Запчасти Case IH 610 (78.110.08.AB) - PRODUCT FILL GROUP (78) - SPRAYING

1

BN325839

MOUNTING PLATE

Product Pump and Manifolds

1шт.

2

BN2390846

HOSE,4.00" ID

Suction AG, 2.333

1шт.

3

BN2403396

CLAMP

T-Bolt Band 4.72"

2шт.

4

87310332

BOLT

1/2-20 X .75, GR8, DOR

8шт.

5

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

8шт.

6

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

1шт.

7

832-44612

FLANGE NUT,M12 x 1.75, Flg, Cl 10

1шт.

8

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

9

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

10

86981677

WASHER,11mm ID x 30mm OD x 2.5mm Thk

4шт.

11

86981676

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

13.5 X 28 X 4 DOR

2шт.
