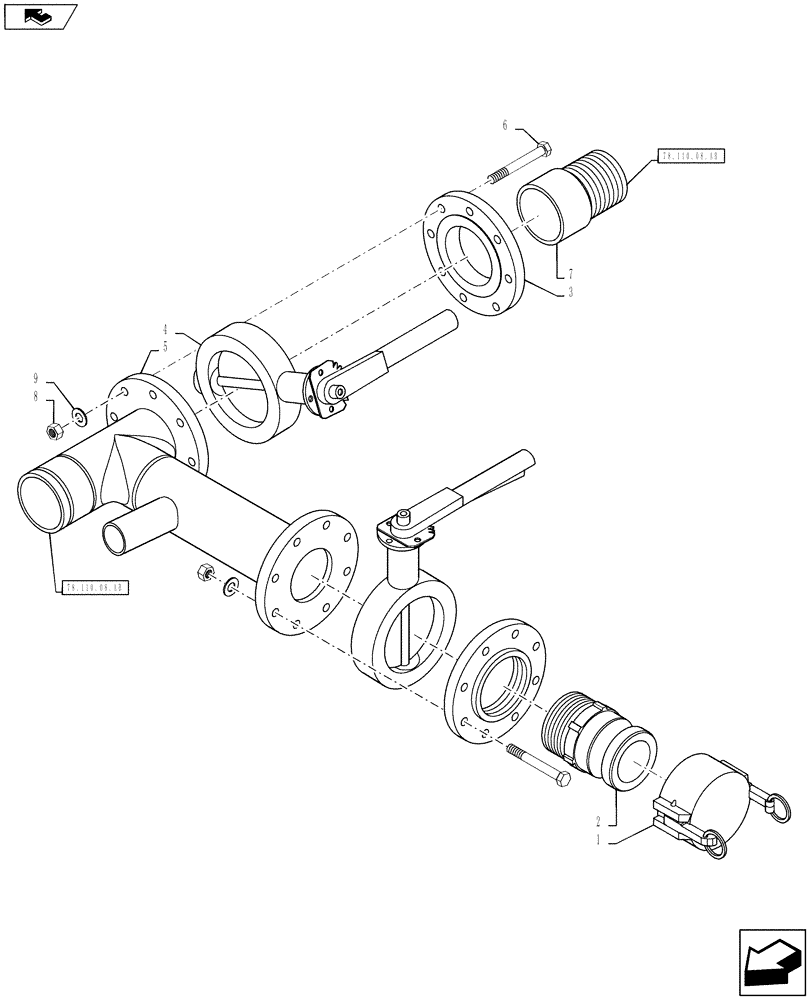

Запчасти Case IH 610 (78.110.08.AA) - SUCTION MANIFOLD (78) - SPRAYING

1

BN2393389

CAP

Coupler, 4" Dust, Poly

1шт.

2

87656021

COUPLING

4"

1шт.

3

BN2390657

FLANGE

Threaded 4", 8 Bolt

2шт.

4

BN2392209

VALVE

Butterfly, 4" With Handle

2шт.

5

87269805

MANIFOLD

Suction

1шт.

6

86980451

BOLT,Hex, M16 x 130mm, Cl 8.8

M16-2 x 130mm, 8.8, DOR

8шт.

7

BN2294422

LUBE NIPPLE

LUBRICATOR Combo, 4" NPT x 4" Hose Barb

1шт.

8

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

8шт.

9

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

17.5 x 30 x 4 mm, HDN, DOR

8шт.
