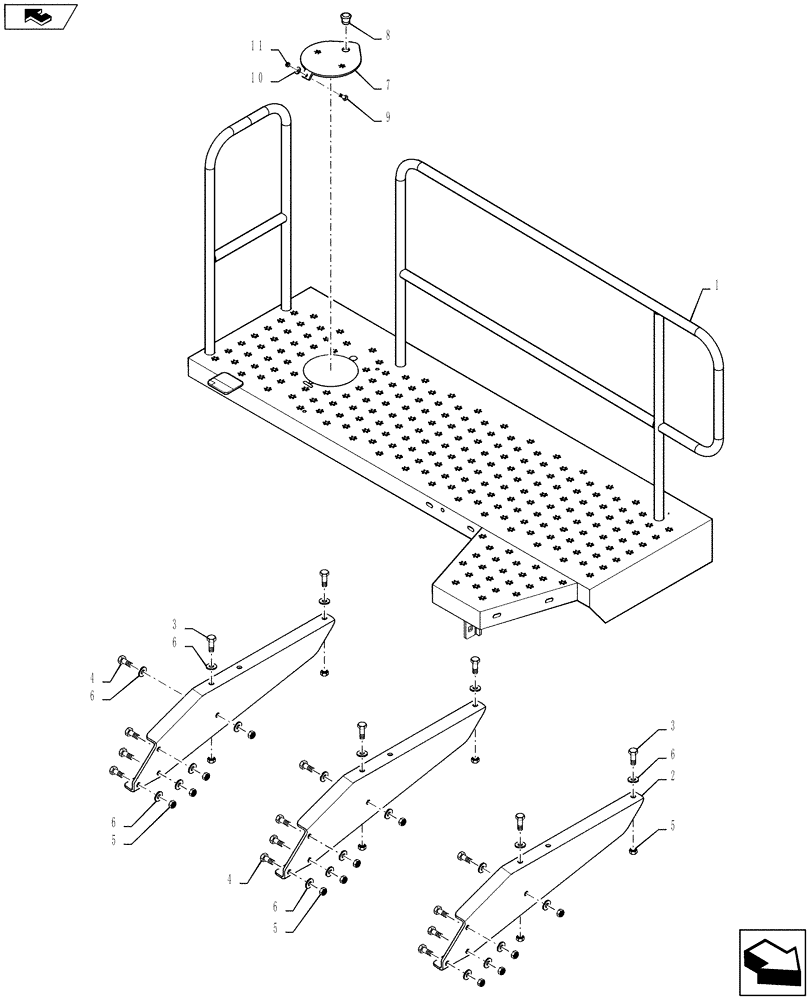

Запчасти Case IH 610 (78.110.07.AA) - REAR WALKWAY (78) - SPRAYING

1

87272344

EXTENSION

Side Walkway, With Foam Marker Water Tank Fill Access

1шт.

2

87267853

SUPPORT

Walkway

3шт.

3

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

6шт.

4

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

12шт.

5

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

18шт.

6

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

21шт.

7

87272348

COVER

Foam Marker Water Tank Fill

1шт.

8

87270792

LATCH

Magnetic

1шт.

9

86980358

BOLT,Hex, M6 - 1 x 12mm, Cl 8.8, DOR

1шт.

10

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

1шт.

11

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

1шт.
