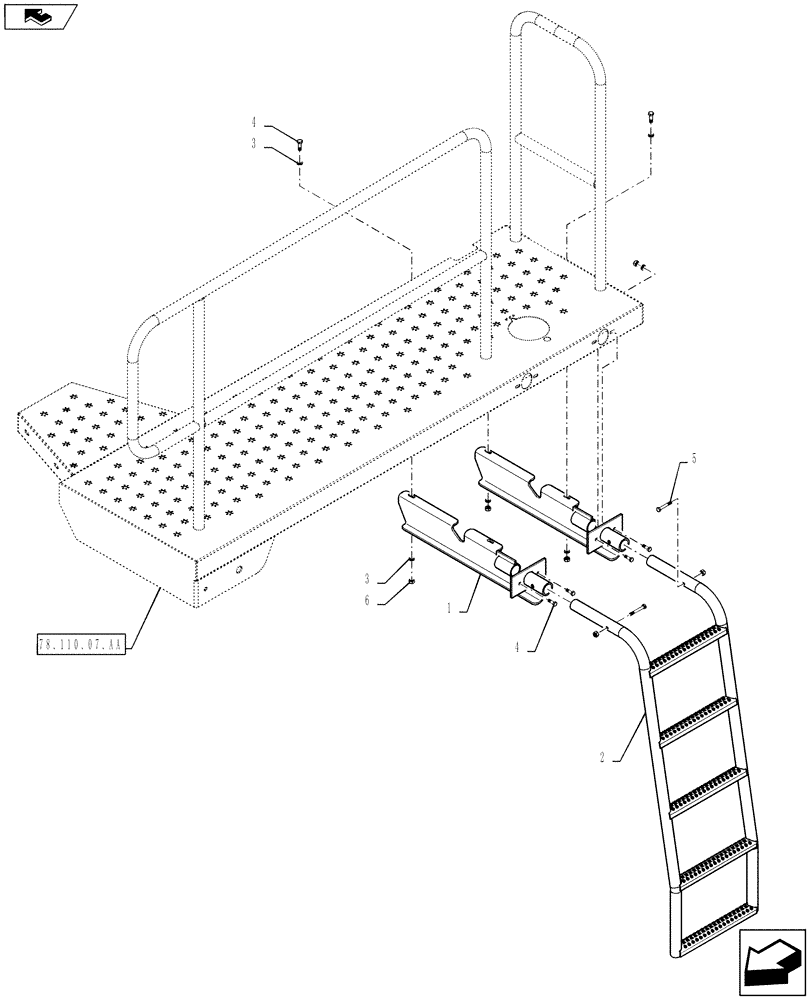

Запчасти Case IH 610 (78.110.06.AA) - REAR LADDER (78) - SPRAYING

1

87267835

MOUNTING PLATE

Rear Ladder

2шт.

2

87267846

LADDER

Rear

1шт.

3

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2mm HDN DOR

12шт.

4

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

5

86980386

BOLT,Hex, M8 - 1.25 x 60mm, Cl 8.8, DOR

2шт.

6

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

10шт.
