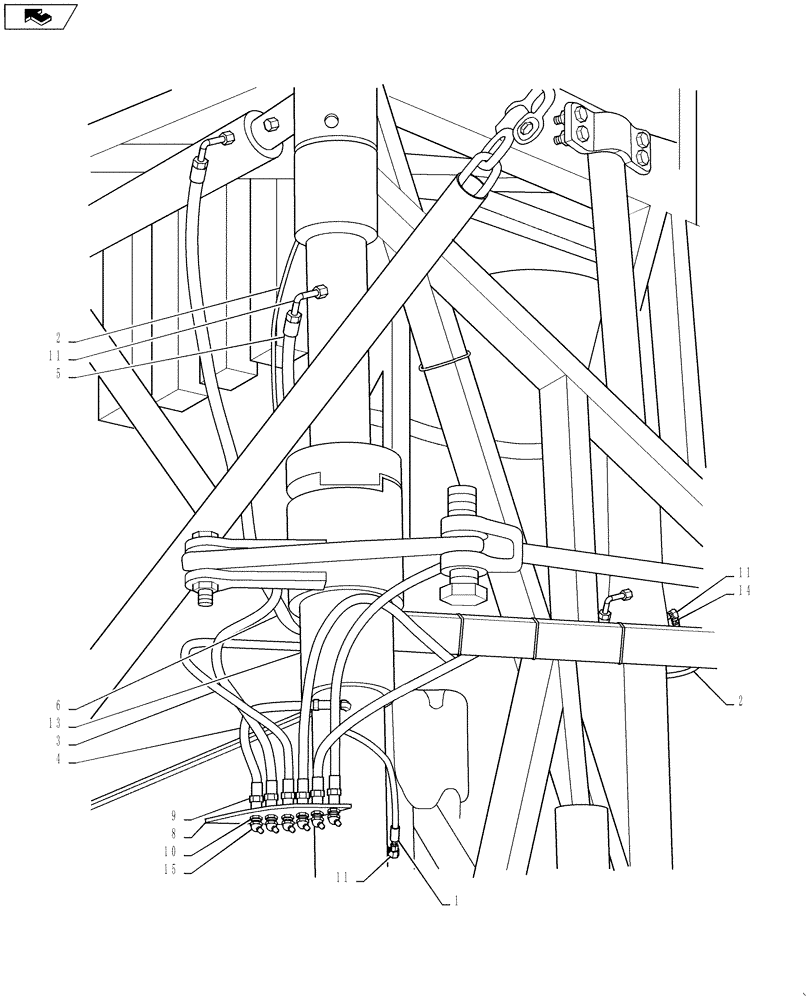

Запчасти Case IH 610 (71.460.01) - BOOM GREASE BANK GROUP (71) - LUBRICATION SYSTEM

1

BN35810

HOSE,0.13" ID x 16.00", SAE 100R7

Grease

4шт.

2

BN316482

HOSE,0.13" ID x 40.00", SAE 100R7

Grease

6шт.

3

BN316481

HOSE,0.13" ID x 23.00", SAE 100R7

Grease

2шт.

4

BN316480

HOSE,0.13" ID x 8.00", SAE 100R7

Grease

2шт.

5

BN35808

HOSE,0.13" ID x 30.00", SAE 100R7

Grease

2шт.

6

BN35809

HOSE,0.13" ID x 20.00", SAE 100R7

Grease

2шт.

7

BN316483

BRACKET

RH Grease Bank (Not Shown)

1шт.

8

BN316484

BRACKET

LH Grease Bank

1шт.

9

BN35805

ADAPTER

Straight 1/8 NPSM - NPTF

18шт.

10

BN53570

BHD LOCK NUT

18шт.

11

BN316475

ELBOW

1/8" FPT x 1/4" MPT

10шт.

12

BN316494

ELBOW

1/8" FPT x 1/8" MPT (Not Shown)

6шт.

13

BN311142

ELBOW

1/4-28 UNFT x 1/8-27 NPTF 90

2шт.

14

BN316478

ADAPTER

Swivel

18шт.

15

BN10451

LUBE NIPPLE

1/4"-28 45º

18шт.
