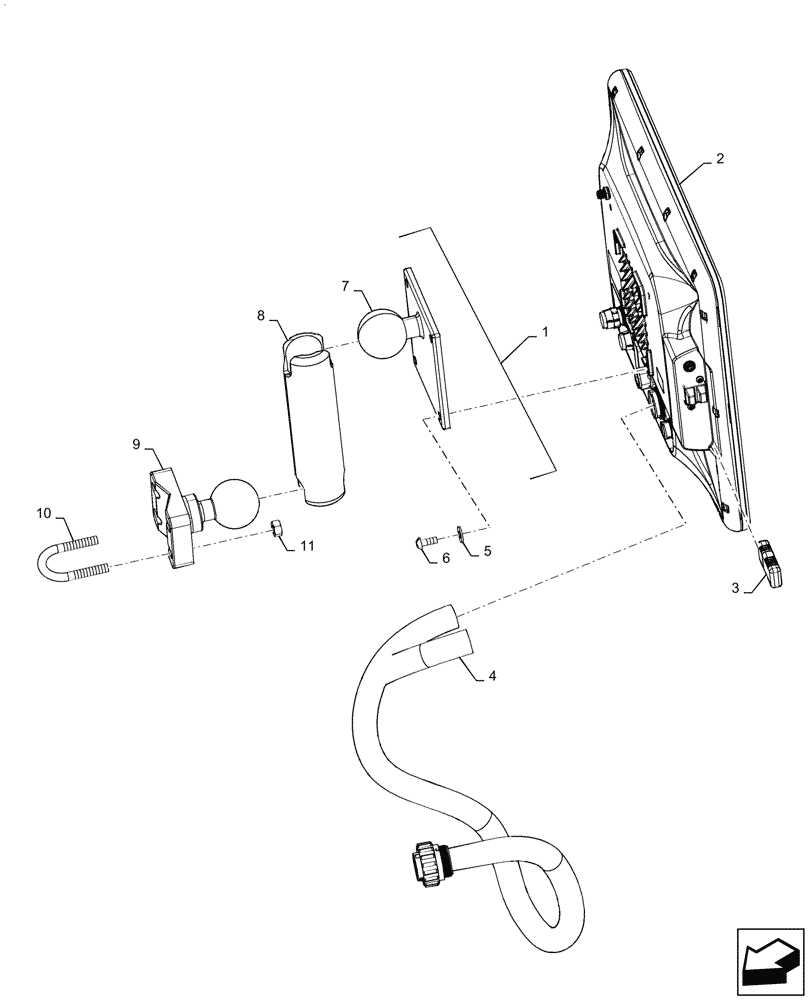

Запчасти Case IH 610 (55.635.07) - VIPER 4 PLUS MONITOR (55) - ELECTRICAL SYSTEMS

1

87386396

MOUNT

Color Display Arm

1шт.

2

48039564

DISPLAY

Touchscreen, Viper 4 Plus

1шт.

3

47962967

MEMORY CARD

4GB USB

1шт.

4

47568041

WIRE HARNESS

Display

1шт.

5

88612

WASHER,0.22mm ID x 0.5mm OD x 0.05mm Thk

4шт.

6

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

4шт.

7

87386398

SUPPORTING ARM

Display

1шт.

8

87284257

ARM

Double Socket, 1.5" Ball

1шт.

9

87284259

PLATE

Base

1шт.

10

86632541

U-BOLT,1/4” - 20, 1.75” L x 1” W

2шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.
