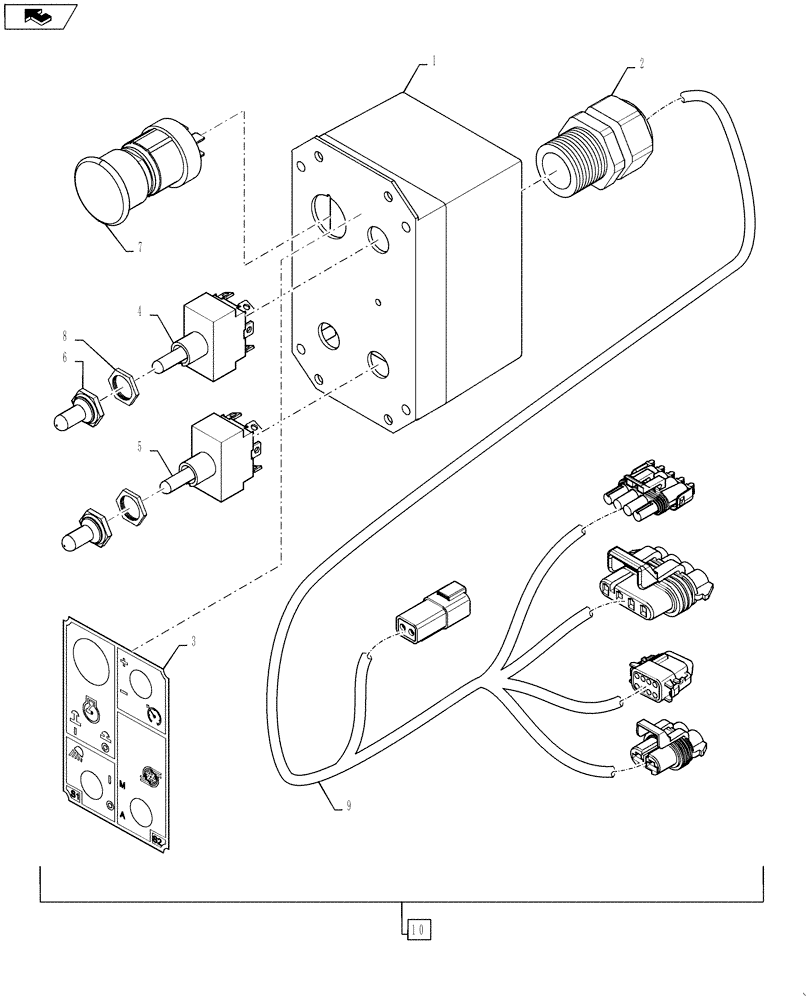

Запчасти Case IH 610 (55.635.02) - REMOTE STATION RELOAD CENTER (55) - ELECTRICAL SYSTEMS

1

86986403

SHIELD

Remote Station Enclosure

1шт.

2

BN66117

NUT

Strain Relief Cable

1шт.

3

86986405

DECAL

Remote Station

1шт.

4

BN29445

SWITCH

On-Off-On, Remote Engine RPM Control

1шт.

5

BN24129

SWITCH

On-None-On, Light and Product Pump

2шт.

6

343660A1

COVER

Toggle Switch, Black

3шт.

7

86986404

SWITCH

Push/Pull, Sealed, Engine Stop

1шт.

8

BN324373

NUT

1/2" Toggle Switch

3шт.

9

87266537

HARNESS

Remote Module

1шт.

See Fig 55.100.12 For Service Parts

1шт.

10

87266536

CONTROL UNIT

Remote Station Reload Center, Includes Ref 1-9

1шт.
