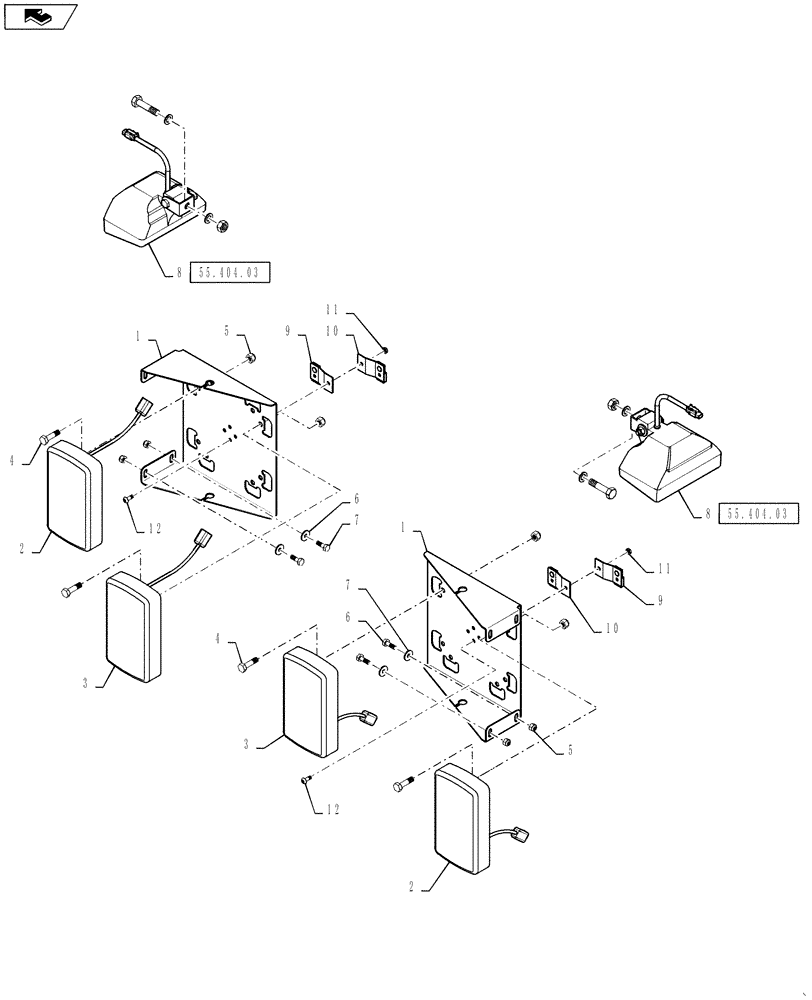

Запчасти Case IH 610 (55.404.01) - TAIL AND MAST LIGHTS (55) - ELECTRICAL SYSTEMS

1

87267089

MOUNTING PLATE

Tail Light, LED

2шт.

2

84385294

LAMP

Brake, LED Red, 12V, 24 LED Pattern

2шт.

3

84385299

LAMP

Turn, LED Amber, 12V, 24 LED Pattern

2шт.

4

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

8шт.

5

BN55359

LOCK NUT,1/4"-20, SS

16шт.

6

BN50138

WASHER,1/4", SS

8шт.

7

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

8шт.

8

87658615

LAMP

Flood, Assembly

2шт.

See Fig 55.404.03 For Service Parts

1шт.

9

87267088

RETAINER

Assembly, Deutsch RH

2шт.

10

87267087

RETAINER

Assembly, Deutsch LH

2шт.

11

225-30210

NUT,#10-32, Stainless

2шт.

12

BN52348

BOLT,Phil Pan Hd, #10 - 32 x 1/2", Stainless

PHILLIP

2шт.
