(55.100.11) - PRO 700 CAB HARNESS

Запчасти Case IH 610 (55.100.11) - PRO 700 CAB HARNESS (55) - ELECTRICAL SYSTEMS

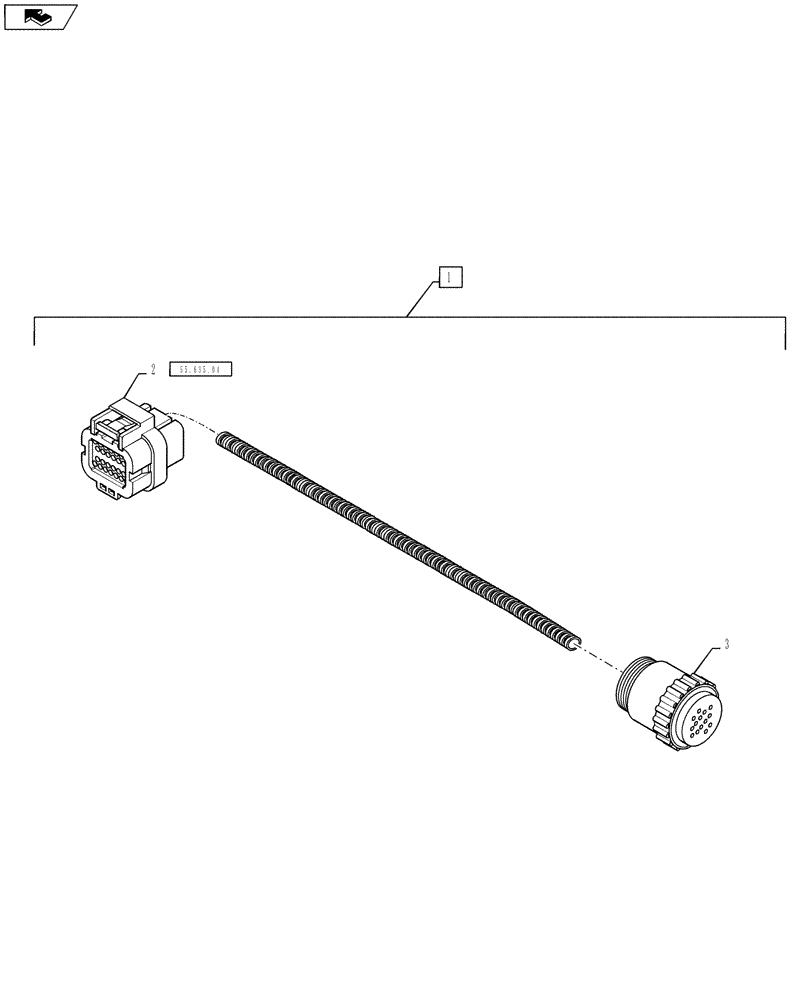

Схема запчастей Case IH 610 - (55.100.11) - PRO 700 CAB HARNESS (55) - ELECTRICAL SYSTEMS
2
55.635.04
home
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84189330

WIRE HARNESS

Pro 700 to Cab, Includes Ref 2 - 3

1шт.

2

87691969

MULTIPOLE CONNECTOR,Female, 26 Pole

CODI, C001

1шт.

2

82017048

CABLE TERMINAL

Female, CODI, C001

7шт.

3

87686681

ELEC CONNECTOR

Cab Interface, BH11

1шт.

3

225141C1

MULTIPOLE CONNECTOR

Clamp, Cab Interface, BH11

1шт.

3

225109C1

POWER SOCKET,Gold, 0.8 - 1.0mm

Cab Interface, BH11

8шт.
