(55.100.10) - FOAM MARKER EXTENSION HARNESS

Запчасти Case IH 610 (55.100.10) - FOAM MARKER EXTENSION HARNESS (55) - ELECTRICAL SYSTEMS

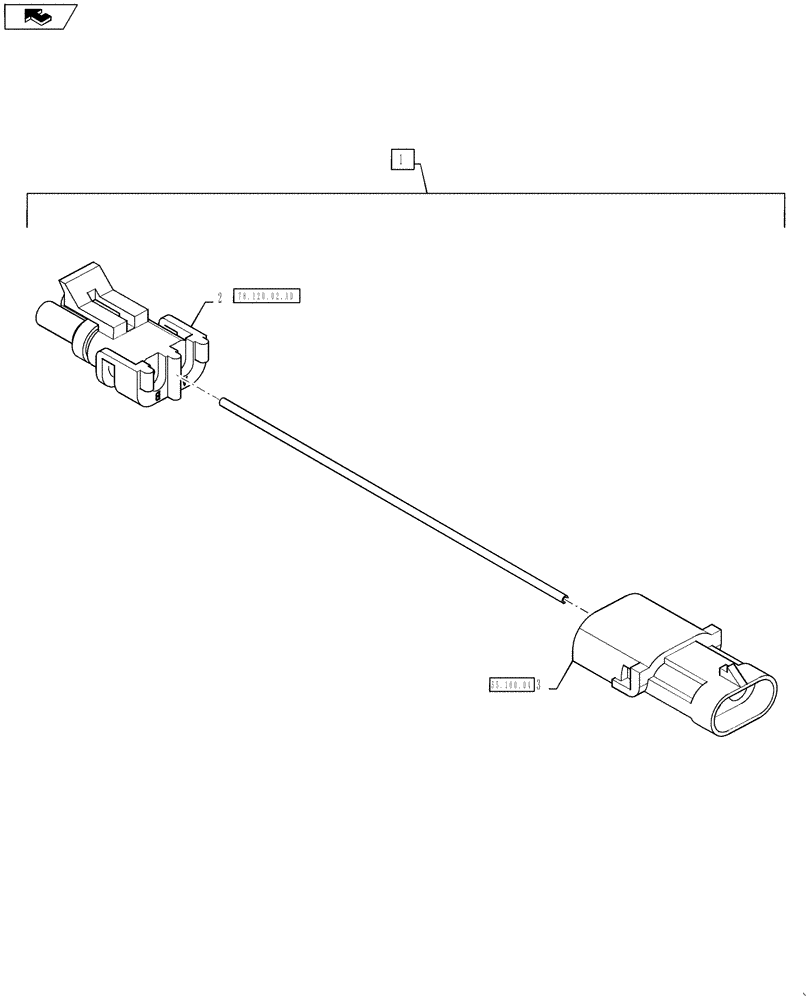

Схема запчастей Case IH 610 - (55.100.10) - FOAM MARKER EXTENSION HARNESS (55) - ELECTRICAL SYSTEMS
home
78.120.02.ad
55.100.04
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN323787

WIRE HARNESS

Foam Marker Extension, Includes Ref 2 - 3

1шт.

2

245482C1

ELEC CONNECTOR,2 Pin

Foam Marker Venturi, C01

1шт.

2

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Foam Marker Venturi, C01

2шт.

2

225124C1

SEAL,2 - 2.9 mm2

Foam Marker Venturi, C01

2шт.

3

245483C1

ELEC CONNECTOR,Male, 2 Pin

Product Control, C02, X-414F1/X-421F1

1шт.

3

225119C1

TERMINAL

Product Control, C02, X-414F1/X-421F1

2шт.

3

225124C1

SEAL,2 - 2.9 mm2

Product Control, C02, X-414F1/X-421F1

2шт.
