(55.100.09) - PRESSURE WASHER SWITCH EXTENSION HARNESS

Запчасти Case IH 610 (55.100.09) - PRESSURE WASHER SWITCH EXTENSION HARNESS (55) - ELECTRICAL SYSTEMS

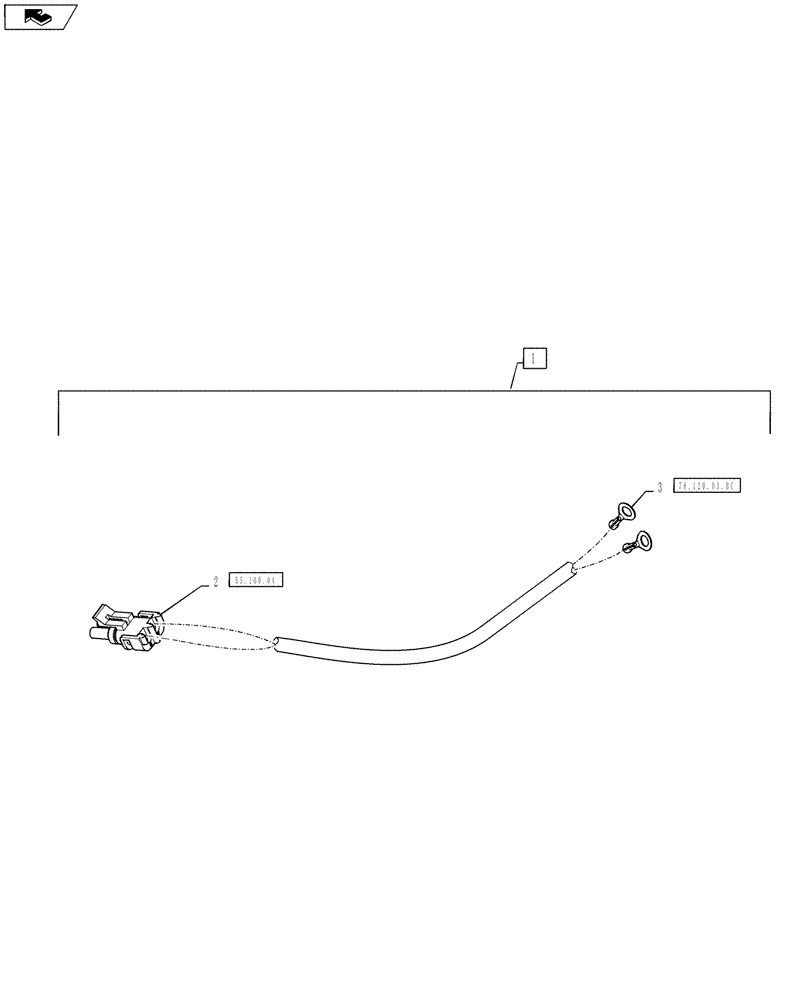

Схема запчастей Case IH 610 - (55.100.09) - PRESSURE WASHER SWITCH EXTENSION HARNESS (55) - ELECTRICAL SYSTEMS
78.120.03.bc
home
3
55.100.04
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87265569

WIRE HARNESS

Extension, Pressure Washer Switch, Includes Ref 2 - 3

1шт.

2

245482C1

ELEC CONNECTOR,2 Pin

Hydraulic Control, X-423F1

1шт.

2

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

Hydraulic Control, X-423F1

2шт.

2

87680701

SEAL

Seal, Hydraulic Control, X-423F1

2шт.

3

84244501

TERMINAL

Remote Wash Switch

2шт.

Выбрано товаров: 5
