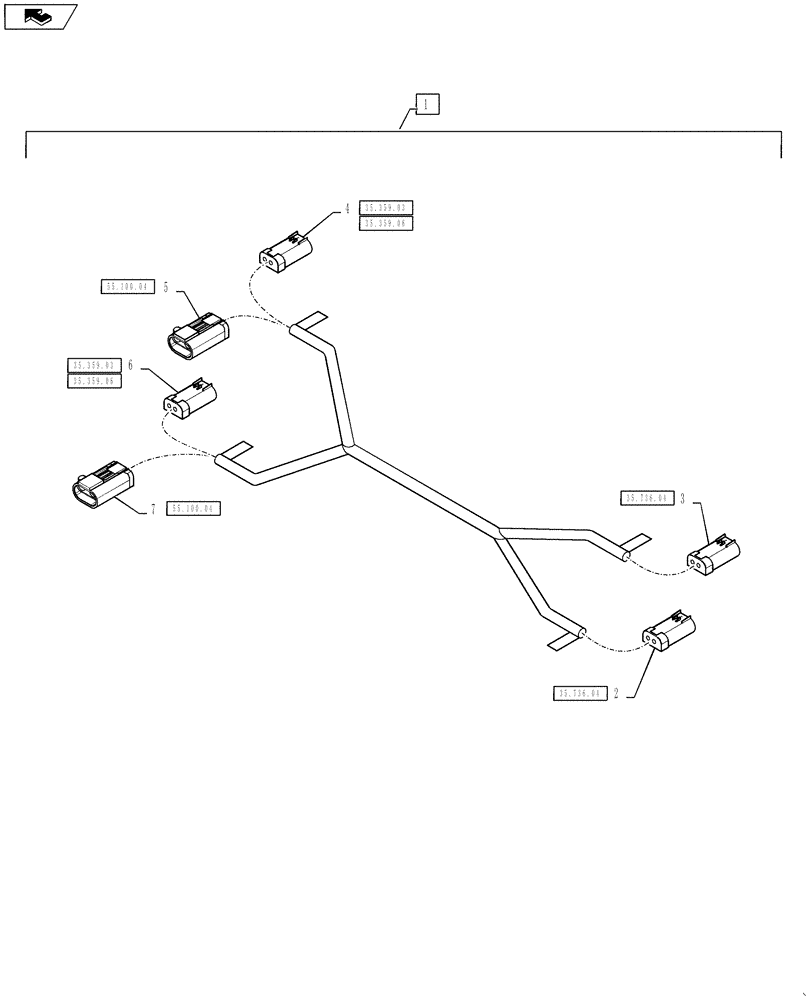

Запчасти Case IH 610 (55.100.07) - STABILIZER RELEASE HARNESS (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
87272154
WIRE HARNESS
Boom Stabilizer Release, Includes Ref 2 - 7
1шт.
2
225316C1
ELEC CONNECTOR,Female, 2 Pin
RH Boom Stabilizer Valve, P425
1шт.
2
86500166
ELEC CONNECTOR
Wedge, RH Boom Stabilizer Valve, P425
1шт.
2
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
RH Boom Stabilizer Valve, P425
2шт.
3
225316C1
ELEC CONNECTOR,Female, 2 Pin
LH Boom Stabilizer Valve, P424
1шт.
3
86500166
ELEC CONNECTOR
Wedge, LH Boom Stabilizer Valve, P424
1шт.
3
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
LH Boom Stabilizer Valve, P424
2шт.
4
225316C1
ELEC CONNECTOR,Female, 2 Pin
LH Boom Fold In Solenoid, P401
1шт.
4
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
LH Boom Fold In Solenoid, P401
2шт.
5
225315C1
ELEC CONNECTOR,Male, 2 Pin
LH Boom Fold In Harness, J401, X-401M1
1шт.
5
381417A1
TERMINAL,Male, Nickel, 0.50 - 1.00mm
LH Boom Fold In Harness, J401, X-401M1
2шт.
6
225316C1
ELEC CONNECTOR,Female, 2 Pin
RH Boom Fold In Solenoid, P403
1шт.
6
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
RH Boom Fold In Solenoid, P403
2шт.
7
225315C1
ELEC CONNECTOR,Male, 2 Pin
RH Boom Fold In Harness, J403, X-403M1
1шт.
7
381417A1
TERMINAL,Male, Nickel, 0.50 - 1.00mm
RH Boom Fold In Harness, J403, X-403M1
2шт.
Выбрано товаров: 15
